Supermarket Shelving and Gondola Systems: Five Procurement Routes

Supermarket shelving is a store-planning package, not just a count of gondola bays. Buyers should define fixture runs, special units, accessories and interfaces from the store plan before comparing proposals.

The entries are product categories, not named manufacturers or a ranking. They do not establish load ratings, approvals, export history or suitability for a particular store. Confirm all performance requirements with the project designer and the exact product documentation.

Which supermarket shelving supplier types should a buyer compare?

Start with the approved plan and identify each fixture run, bay, end condition and checkout position. Give each run an item code and connect it to its location, quantity, dimensions, finish, accessories and installation responsibility. Separate shelving from refrigeration, electrical work, signage, point-of-sale equipment and local fixing work unless the written scope includes them.

Record the aisle width and display intent in the project documents, but let the local project team confirm circulation, accessibility, egress and other code requirements. A shelf layout that looks workable in a product brochure may not fit the actual store plan or neighbouring equipment.

Which supermarket shelving supplier types should a buyer compare?

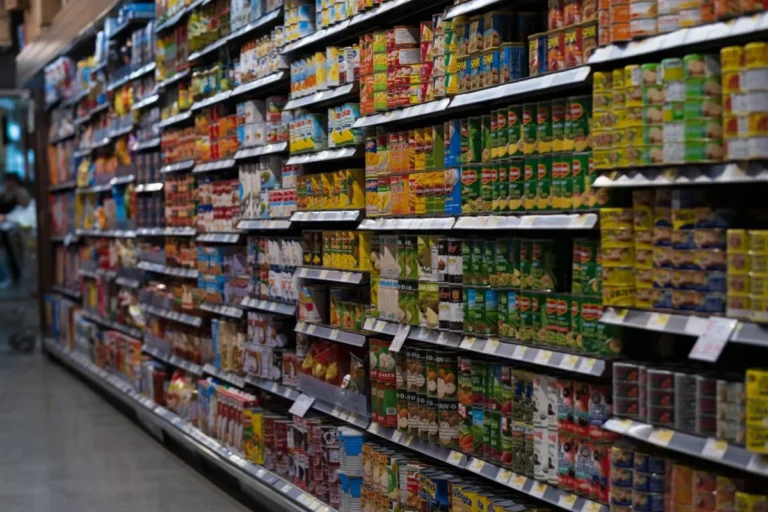

1. Double-sided centre-aisle gondolas

These runs present products to shoppers from both sides. Specify the bay width and height, base, uprights, shelves, back panels, dividers and any hooks or baskets. Show the end condition and how the run terminates. If different departments use different accessories, map those to the item codes rather than treating the full gondola as one generic line.

Request an assembly drawing and a schedule of components by bay. Ask how the quoted configuration differs between standard sections, corners and ends. If a supplier proposes a capacity figure, have the project team confirm the exact test or engineering basis and whether the figure applies to that complete assembly.

2. Wall shelving and perimeter runs

Wall-mounted or wall-adjacent displays need a clear fixing assumption. Provide wall elevations, finished dimensions and information about skirtings, wall protection, doors, columns and service points. Identify any local wall reinforcement or installation work that is outside the product supply.

For a long run, show inside and outside corners, changes in height and interfaces with refrigerated cabinets or service counters. Ask the proposed supplier to mark where a standard bay changes or where a special panel is required.

3. Promotional end units

End units carry a separate display function and may differ from the regular aisle bays. State whether the project expects shelves, hooks, bins, sign holders or other accessories. Identify which elements are fixed and which are intended to change with a promotion. A rendering should not be used as the only record of the supplied components.

4. Checkout and impulse-display fixtures

Checkout counters, queue fixtures and impulse displays sit beside operational equipment. Separate the furniture scope from conveyors, scanners, payment terminals, security gates and cabling. Show the operator side, public side, storage, access panels and any cut-outs on the drawing. Ask who provides and fits each adjacent item.

5. Back-of-house shelving and stockroom systems

Stockroom shelving serves a different use from customer-facing gondolas. Identify the intended stored goods, arrangement, access method and room conditions. Request product-specific construction details and the manufacturer’s stated load information for the proposed configuration. Have the project’s responsible professional confirm whether that information satisfies the actual use and local requirements.

How to compare proposals without hiding scope differences

Compare the same bay type, accessory set, finish reference, quantity basis, packing assumption and installation boundary. If one proposal includes end panels while another does not, show the difference beside the affected item. Keep alternative constructions as alternatives until accepted. Do not combine equipment or local work into a single “shelving” price if the proposal does not say it is included.

Request a current plan and elevations with dimensions, a part list, material/finish descriptions, assembly and fixing details, and care instructions. If the project requires evidence, ask for documents tied to the offered model and use. A certificate for another product or a factory-wide claim does not automatically describe the specified shelving system.

For quantity and item coding, see our BOQ guide. For design-led coordination, use the shop drawing resource. A broader look at sourcing for construction projects and the FF&E contractor service can help when the store also contains loose furniture.

Start with a coordinated supermarket shelving schedule

A store plan becomes a quoteable fixture package when each run has an identifier and a defined boundary. Show aisle number, wall or gondola position, start and end points, orientation, number of bays, shelf levels and any end treatment. Keep the drawing revision and fixture schedule revision visible. If merchandising has not finalized a category layout, flag that section as provisional instead of allowing each bidder to make a different assumption about the number and position of bays.

Separate repeated standard runs from special fixtures. A gondola run, a wall run, an end display, a checkout zone and a back-of-house rack may all be described as shelving in a rough brief, yet their geometry and interfaces differ. Assign separate schedule codes and attach elevations for non-standard pieces. If one run turns a corner or meets a column, show the transition. State whether fillers, kick plates, end panels, price-strip holders and sign supports are included or excluded.

Define shelf configuration without inventing capacity

For each fixture, state the intended number of levels, approximate shelf dimensions from the design, adjustability requirements and any specified accessories. The buyer should provide the merchandising or design basis for those choices. Where a supplier proposes a load rating, request the test method, configuration and supporting document that apply to the exact offered assembly. Do not compare an isolated load number if one quote refers to a single shelf and another refers to a complete bay, or if test conditions are not the same.

Record which parts are fixed, adjustable or optional. Include dividers, baskets, hooks, rails, guards and display accessories only where they are shown or requested. Ask the bidder to mark all proposed deviations in a separate schedule. This makes it possible for the retailer’s design and operations teams to judge whether a substitution changes stocking practice, cleaning access or visual continuity. A marketing image does not settle any of these details.

Coordinate fixtures with lighting, power and store systems

Supermarket shelving often sits beside systems designed by other disciplines. Identify where power, data, refrigeration, digital signage, security devices or checkout equipment meet the fixture package. This article does not define those systems or their code requirements; it helps the buyer expose the interfaces early. Show connection points and responsible trades on the coordination drawing, and request the fixture supplier’s relevant dimensional information so the project’s electrical or specialist contractor can review it.

For refrigerated or powered equipment adjacent to shelves, keep the commercial boundary explicit: identify whether the shelving supplier provides only the fixture, whether another package provides the equipment, and who coordinates trims and transitions. Do not assume a shelf vendor includes technology simply because a rendering shows a screen or scanner. List each item as included, excluded, by others or pending confirmation, and reconcile that list against the BOQ before comparing prices.

Plan receiving, assembly and store rollout information

For a single store, confirm delivery access, unloading restrictions, storage space and the sequence in which fixture zones can be installed. For a multi-store rollout, distinguish the master design from site-specific schedules and identify which dimensions vary by location. Use a separate location code for each store and version so a revision for one branch does not accidentally replace another branch’s approved package. The site team should confirm access and sequencing from its own construction programme.

Ask the supplier to identify package labels and documents that will help the receiving team match cartons to fixture codes and locations. If the project expects assembly instructions, hardware lists or replacement-part references, include those in the submittal requirements. Agree how missing or damaged items will be recorded at receipt. This is a documentation and coordination plan, not a promise about delivery performance; timing and handling requirements must be agreed against the project’s actual shipping and site arrangements.

Use a like-for-like supermarket shelving comparison

Prepare a comparison matrix with one row per fixture code and columns for the requested configuration, offered configuration, dimensions, finish, accessories, documentation, packing, delivery basis and exclusions. This prevents a low total from masking omitted end units or a different shelf count. Where a bidder offers an alternative, evaluate it as an alternative rather than blending it into the base offer. Ask for a marked-up drawing when a written description cannot show the difference clearly.

Before award, reconcile the latest store plan, schedule, quotation and sample register. Check that each document names the same revision and that unresolved questions have an owner. If a finish sample is approved, record the sample identifier and the scope of that approval. If the plan changes later, issue a revised schedule and request confirmation of the affected lines. Version control is a practical safeguard against ordering a configuration that matched an earlier concept but not the current store layout.

What the buyer should retain after approval

Keep the final fixture matrix, drawings, finish references, approved deviations and clarification log together. Add the contact path for operational questions and any supplier documents that were explicitly required by the project. If a store operator uses its own planogram or fixture naming convention, retain the mapping between that convention and the procurement codes. This helps facilities and merchandising teams identify a unit later without relying on a generic product name.

When asking for procurement support, send the store plan, BOQ, location list, finish schedule, delivery destination and expected package boundary. The clearer the brief, the more useful the comparison becomes: it allows the buyer to compare the same fixture scope across proposals and see where professional design review or a specialist system provider still needs to respond.

see what a BOQ-based quotation should make explicit in the project documents. Read our See what a BOQ-based quotation should make explicit.

Questions project teams ask

Are gondolas and wall shelving the same fixture?

They may share components, but their position, fixing assumptions and end conditions differ. Schedule each configuration separately.

Can a supplier state shelf capacity in the quotation?

Ask for the basis and exact configuration behind any stated figure. The project’s responsible professional should confirm applicability.

Does checkout furniture include payment equipment?

Do not assume so. List the counter, conveyor, scanner, payment terminal, wiring and installation scopes separately.

What drawings should accompany the quote request?

Provide the current plan, elevations, dimensions, bay codes, end conditions, accessories, quantities and adjacent equipment interfaces.
