Overview of the Project
Purchased Products
- Motorized louvered pergola — electric bioclimatic pergola with adjustable aluminum louver blades
- Integrated gutter drainage system
- Remote control motor drive system
- Powder-coated aluminum frame, brackets and installation hardware
Project Background
A U.S. contractor engaged FBM Sourcing to source a custom motorized louvered pergola — an electric bioclimatic pergola with adjustable aluminum louver blades, integrated gutter drainage, and remote-control motor system — produced in Guangdong’s outdoor structure cluster, independently inspected, and shipped FCL to the United States.
A U.S.-based contractor managing a commercial outdoor space fit-out needed a motorized louvered pergola — an electrically controlled bioclimatic pergola structure with adjustable aluminum louver blades that can open and close to regulate sunlight and rain exposure. This product category, well-established in European and Australian markets, has grown significantly in North American commercial and hospitality applications: hotel terraces, restaurant outdoor dining areas, retail walkways, and residential pool decks.
The client required a structure built to custom dimensions, with a specific louver profile configuration, a matching powder coat colour, and a reliable motor drive system controllable via remote or wall switch. Domestic U.S. suppliers could supply comparable products but at prices significantly above budget. The contractor reached out to FBM Sourcing after researching China building material sourcing agents with experience in aluminium outdoor structures.
Chinese manufacturers — particularly in Guangdong’s outdoor structure cluster — produce motorized louvered pergolas at a significant cost advantage over Western suppliers, using the same extruded aluminium profiles, powder coating lines, and motor systems. The key procurement risk is not product availability but quality consistency: louver blade alignment, motor torque and travel accuracy, drainage channel integrity, and finish quality all require independent verification before the structure ships. FBM Sourcing was engaged to manage the full process from factory selection through pre-shipment QC to delivery.
Project Type
Commercial outdoor structure installation
Location
United States
Project Highlights
Custom footprint; motorized louver system (0–135° rotation); integrated drainage; independent factory QC with 30-photo inspection record; FCL sea freight
Project Delivery Time
2024
How It Works?
A motorized louvered pergola involves more specification complexity than most building materials. The structural frame (posts, beams, gutters) is straightforward aluminium fabrication, but the louver system adds mechanical and electrical specification layers that must be documented precisely before factory engagement. For this project, FBM Sourcing worked through a detailed specification review with the contractor: overall structure footprint (length × width), post height, louver blade width and profile cross-section, number of blade spans per bay, motor system specification (single-motor vs. per-bay, rated torque, travel speed, remote control type), gutter drainage configuration, powder coat colour (RAL code), and any LED lighting integration requirements.
We also confirmed the installation environment — wind load zone, sun exposure, whether the structure would be wall-attached or free-standing — because these factors affect the structural specification of the frame profiles and the anchor bracket design. Every confirmed specification was documented in a written brief before factory outreach began. This document served as the reference for factory comparison, technical drawing review, and QC inspection.
Motorized louvered pergola manufacturers in China are concentrated in Guangdong, with the major cluster around Foshan and Guangzhou. Within this cluster, factories range from assembly-only operations that buy in generic profiles and motors, to vertically integrated manufacturers with in-house extrusion, powder coating, and motor assembly. For an export project requiring custom dimensions and specific technical performance, a vertically integrated factory or one with strong control over its component suppliers is strongly preferred — it reduces the number of handoffs where specification errors can be introduced.
FBM Sourcing, your China sourcing partner, evaluated multiple factories against the client’s specification. Key criteria included: in-house extrusion tooling for the required louver blade and gutter profiles; motor supplier track record (reliable motors are the component most likely to cause field failures); ability to produce and pressure-test the integrated gutter drainage system; and prior export experience with U.S.-bound structural shipments, including experience with the relevant HS code classification and documentation requirements. The selected factory demonstrated strong capability across all these dimensions and provided detailed technical drawings that matched the client’s specification within acceptable tolerance.
Planning a similar commercial project?
FBM Sourcing works with project owners, developers, main contractors and FF&E contractors on hotel, apartment, school, office and other commercial building projects. Send us your BOQ, drawings or product list — our team will review it and get back to you.

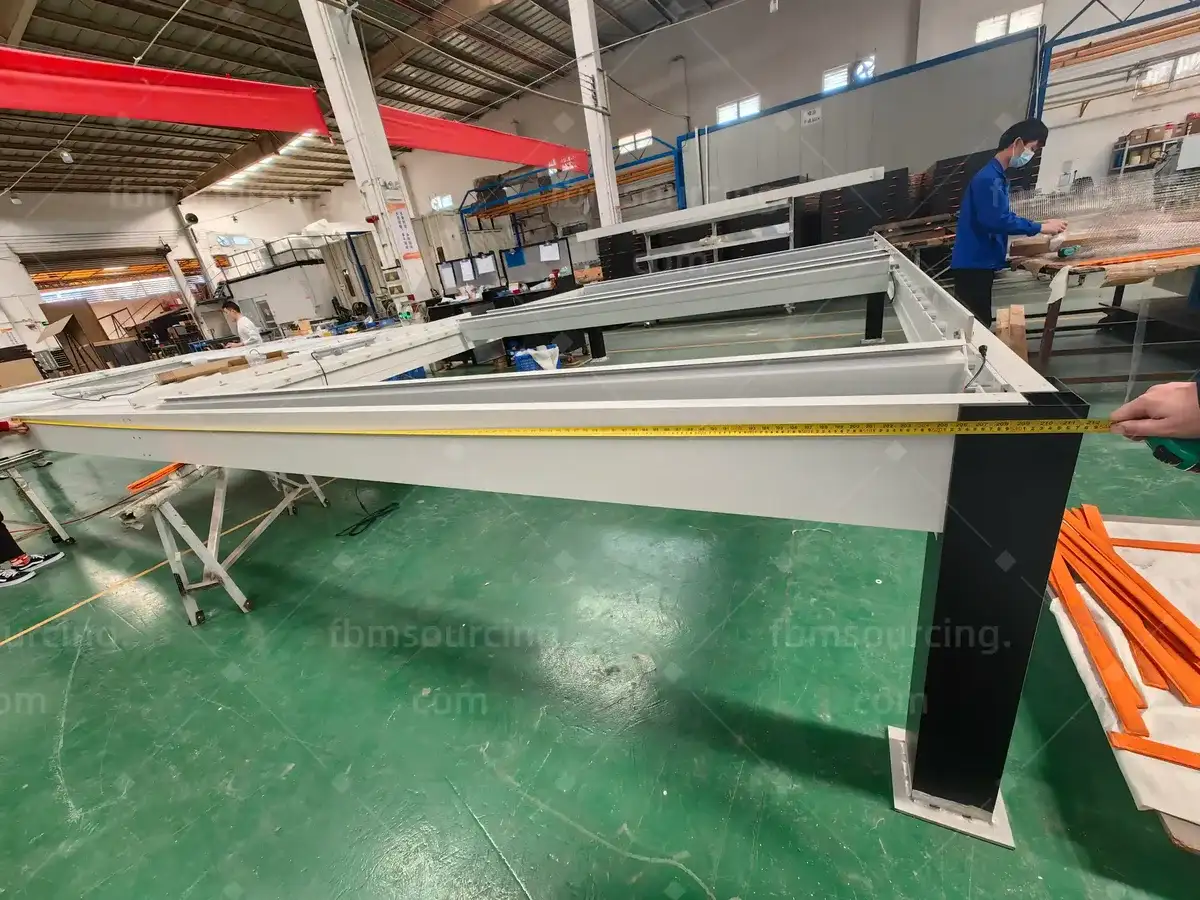

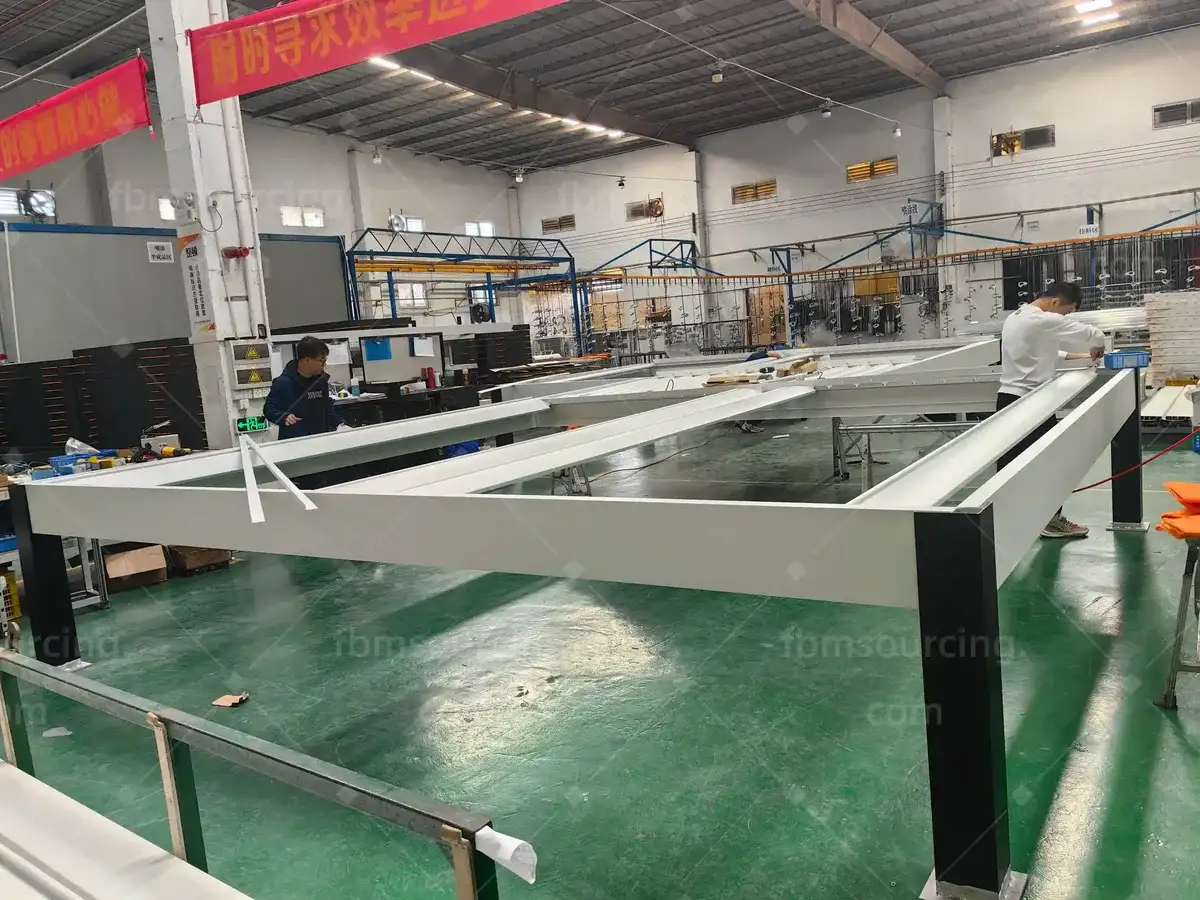

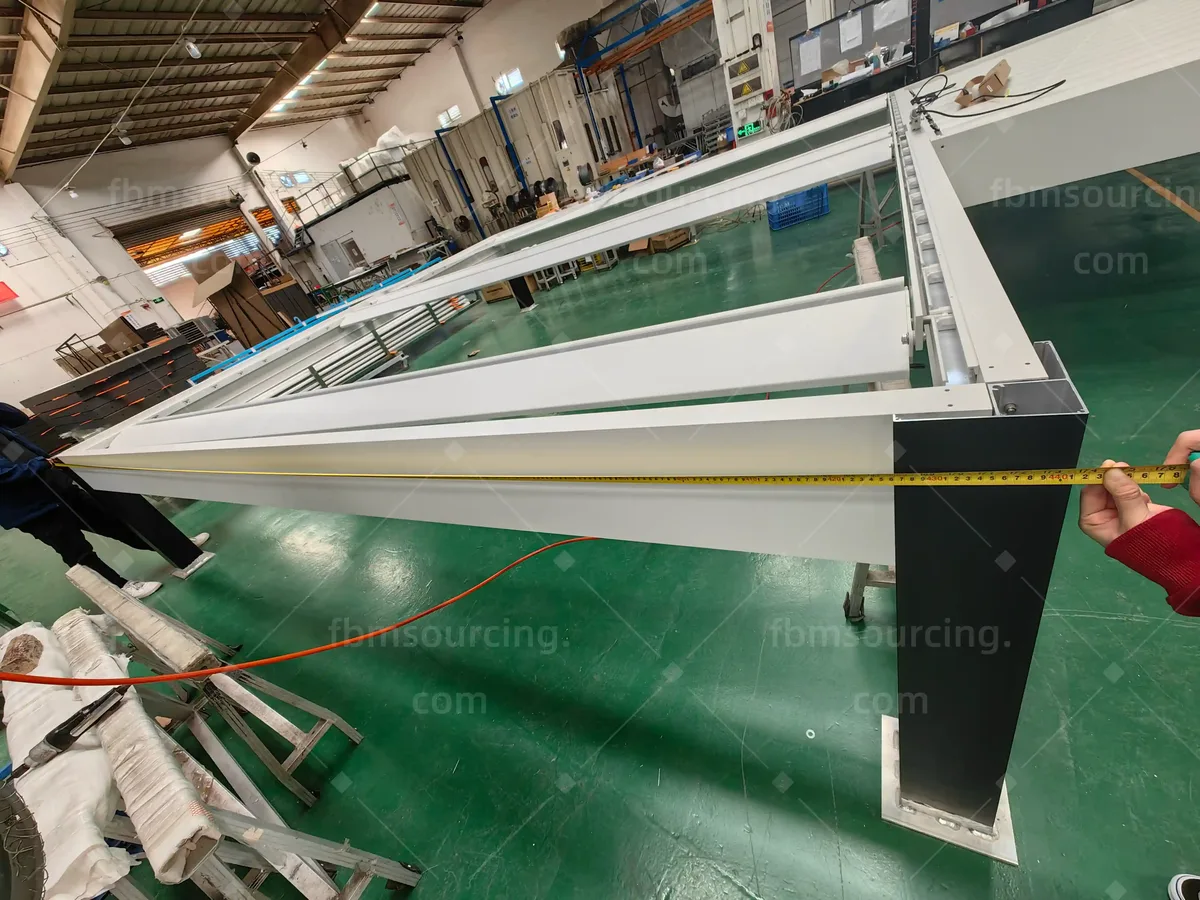

Once the client approved the factory’s technical drawings and confirmed the order, FBM Sourcing issued the purchase order and requested a production schedule broken down by stage: frame extrusion and cutting, powder coating, louver blade fabrication and motor assembly, gutter integration, dry pre-fit assembly, and packing. The dry pre-fit stage — where the factory assembles the complete structure before disassembly and packing — is non-negotiable for a custom motorized pergola. It confirms that all frame connections align, all louver blades seat correctly in their brackets, all motor drive shafts engage properly, and all drainage channels seal without gaps.
FBM Sourcing tracked production against the schedule with weekly updates from the factory production manager. For this project, one minor adjustment was required during the louver blade stage: the blade count per bay was recalculated to ensure equal spacing within the specified overall width, which required re-cutting two profile sets. The factory completed this correction within the production window, and the dry pre-fit assembly confirmed that all components aligned correctly before packing was approved.
Pre-shipment quality inspection for a motorized louvered pergola covers two distinct areas: the structural fabrication quality and the mechanical/electrical system performance. Both must be verified independently at the factory before the container is sealed. FBM Sourcing conducted a full on-site inspection before packing approval was granted for this project.

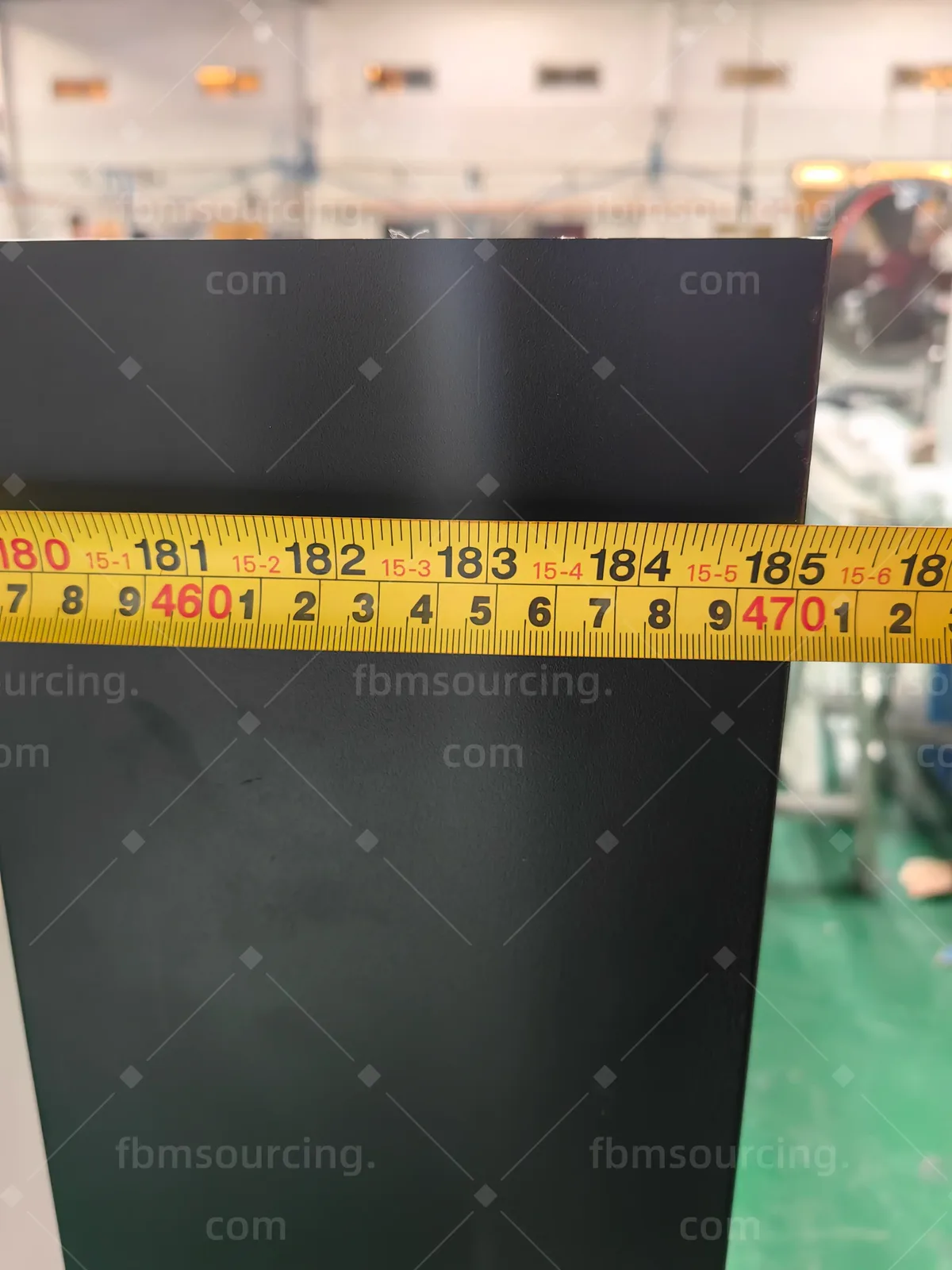

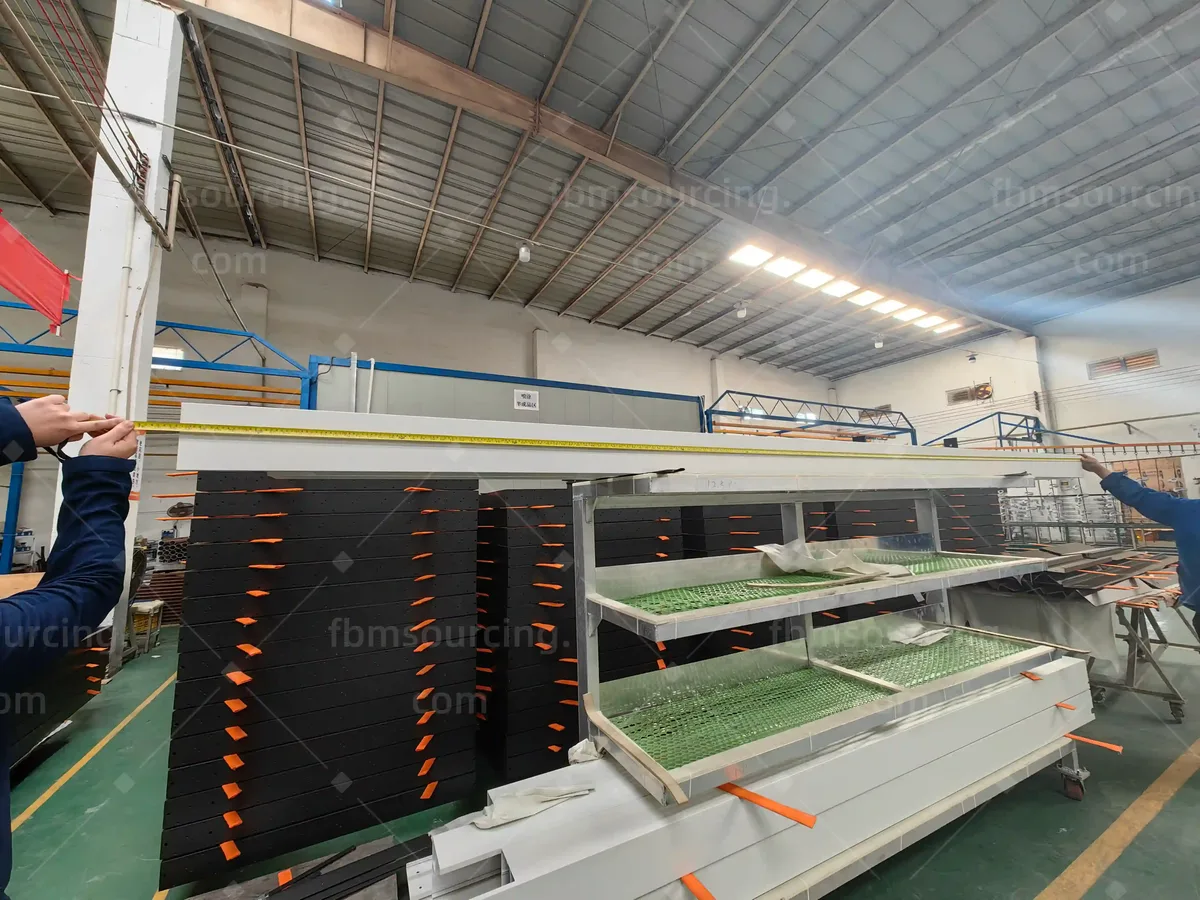

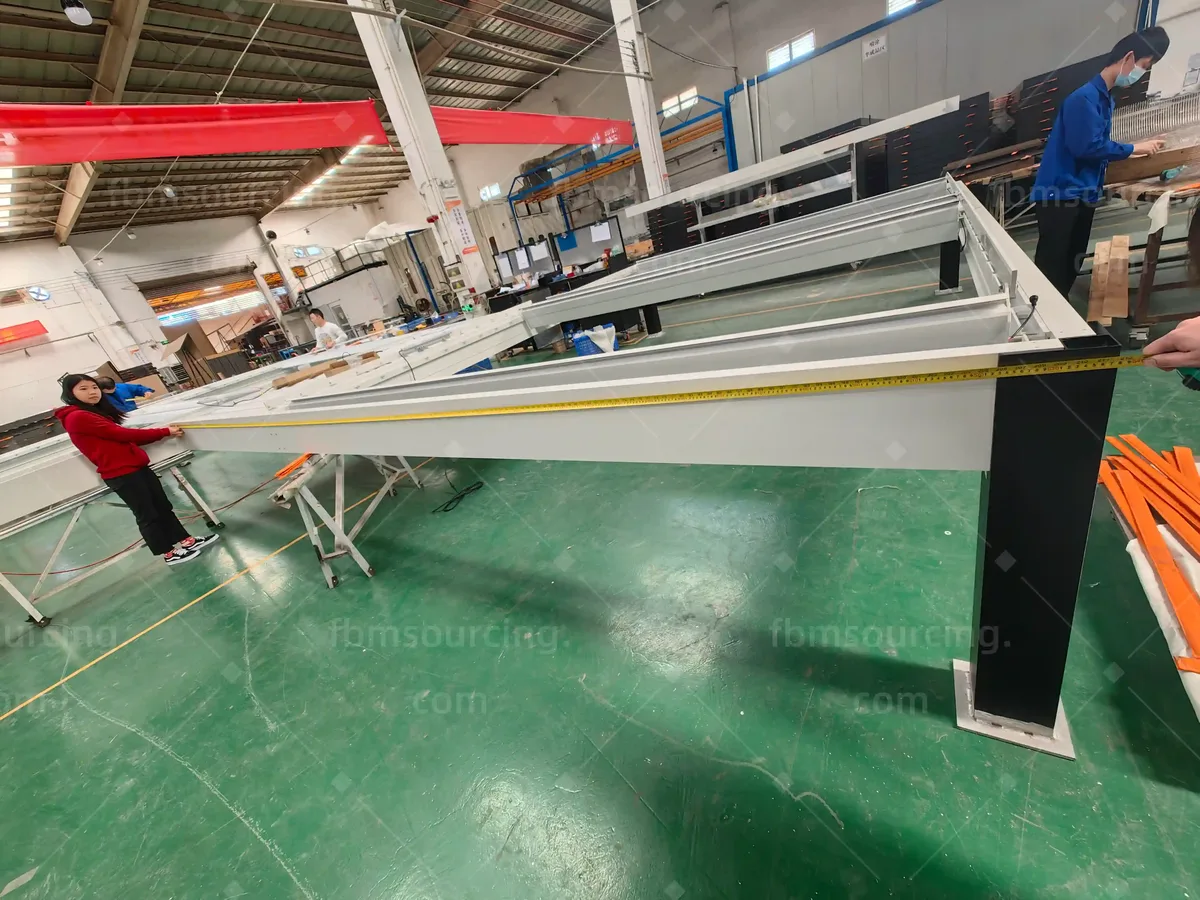

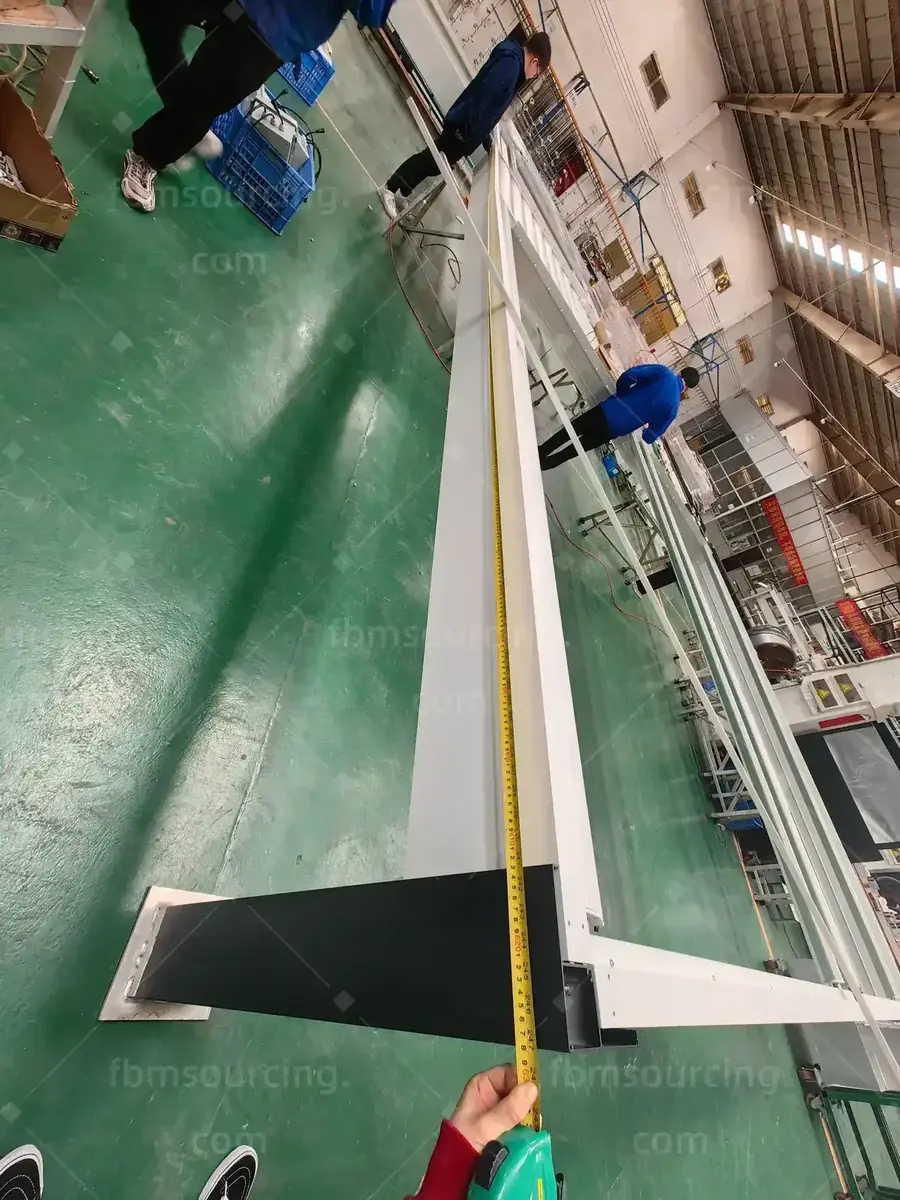

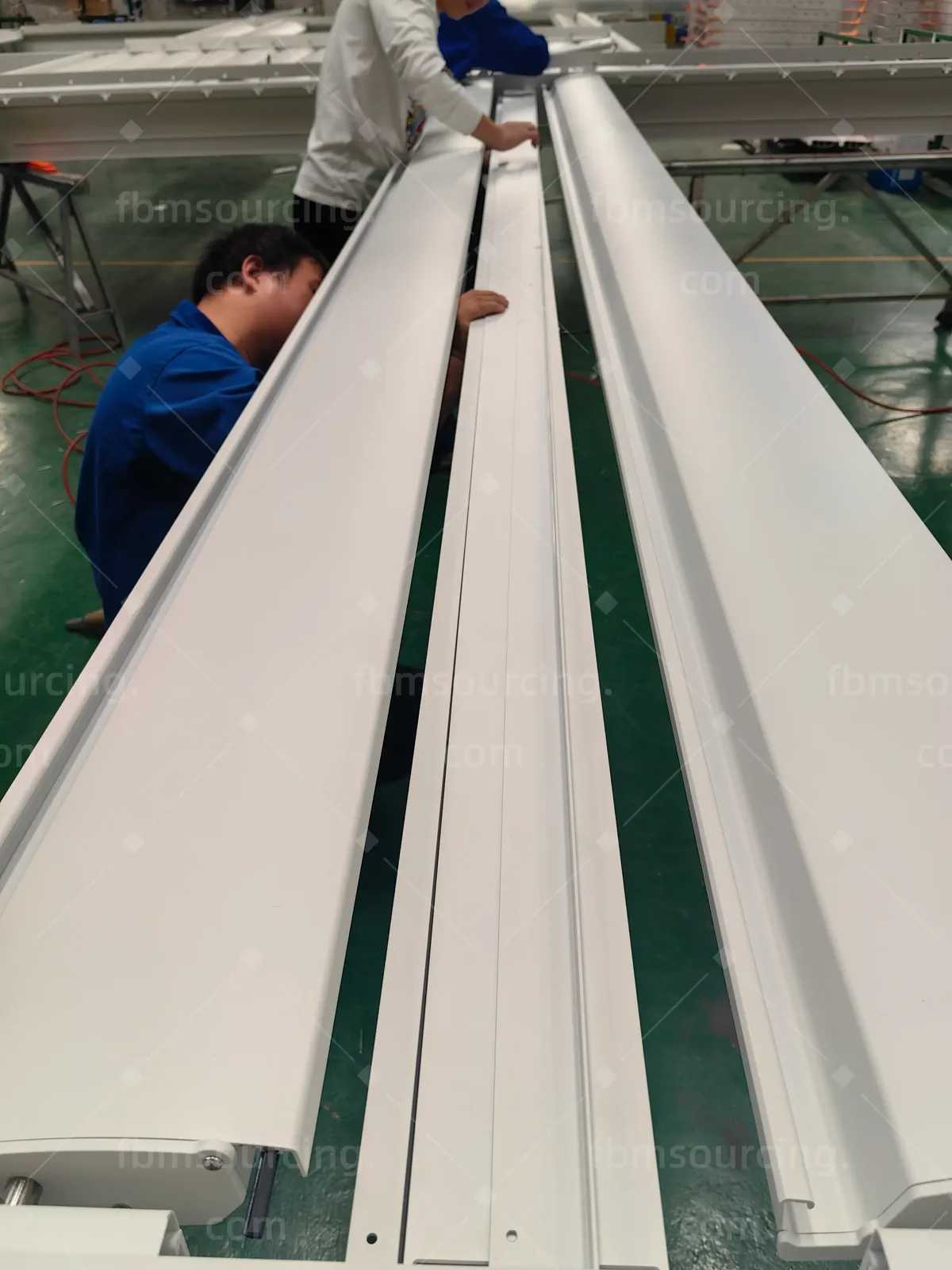

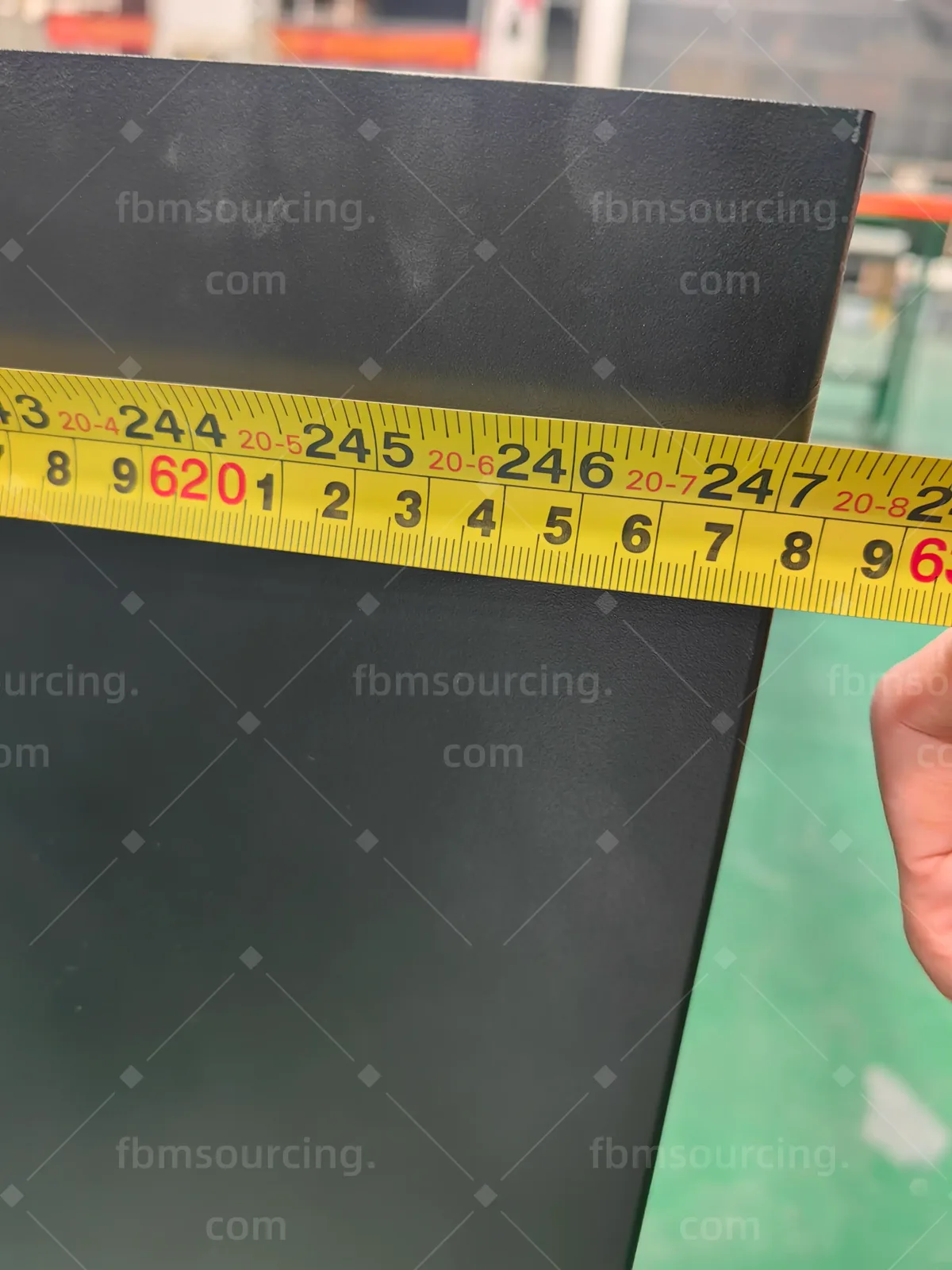

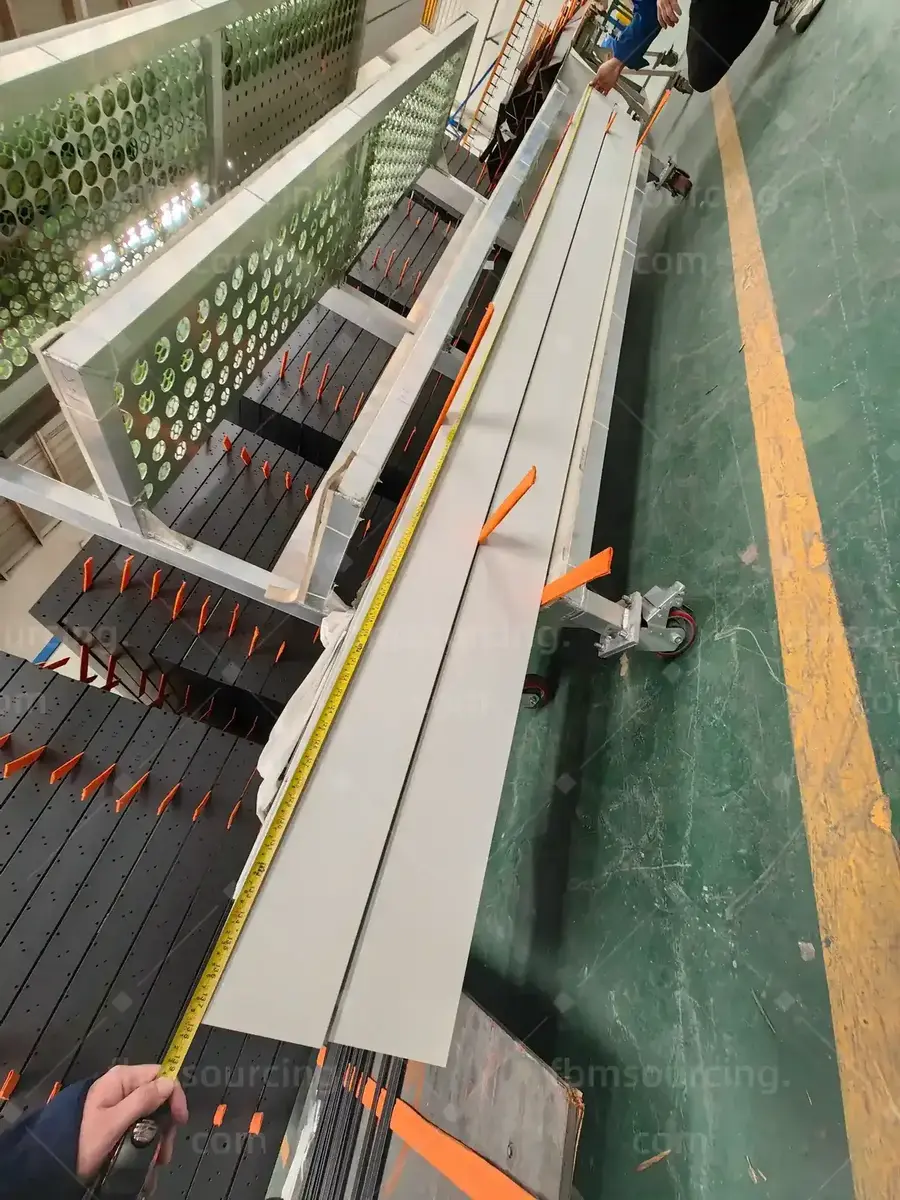

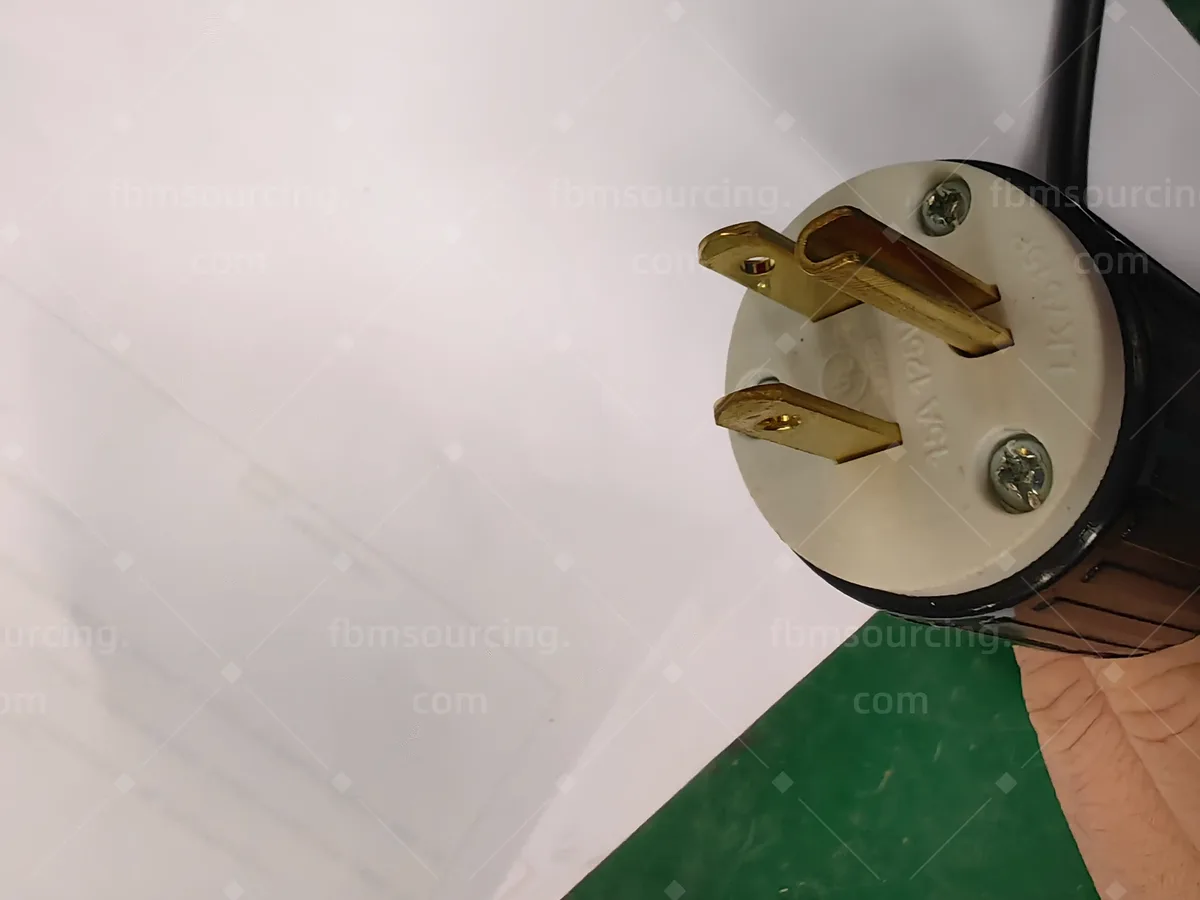

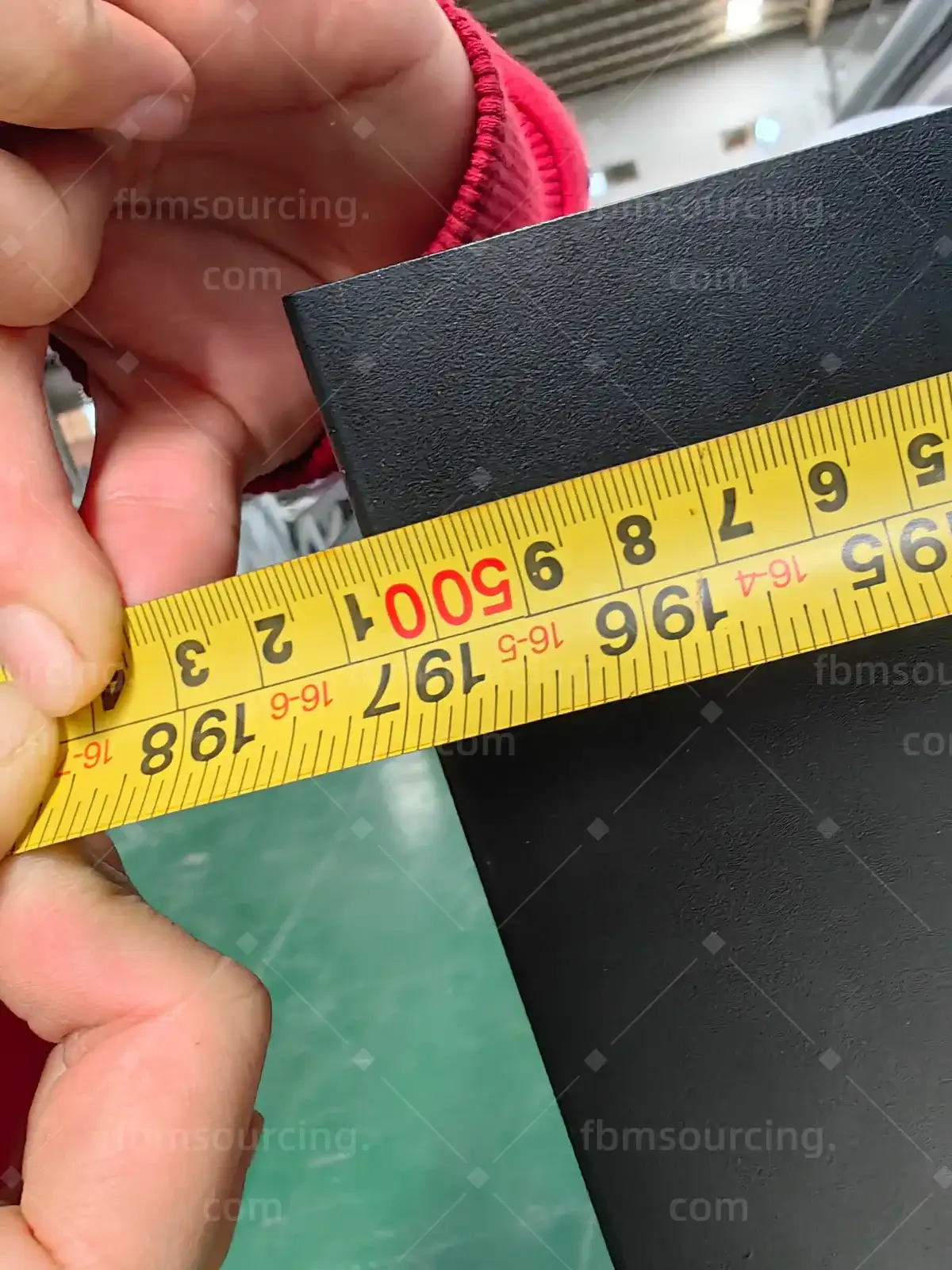

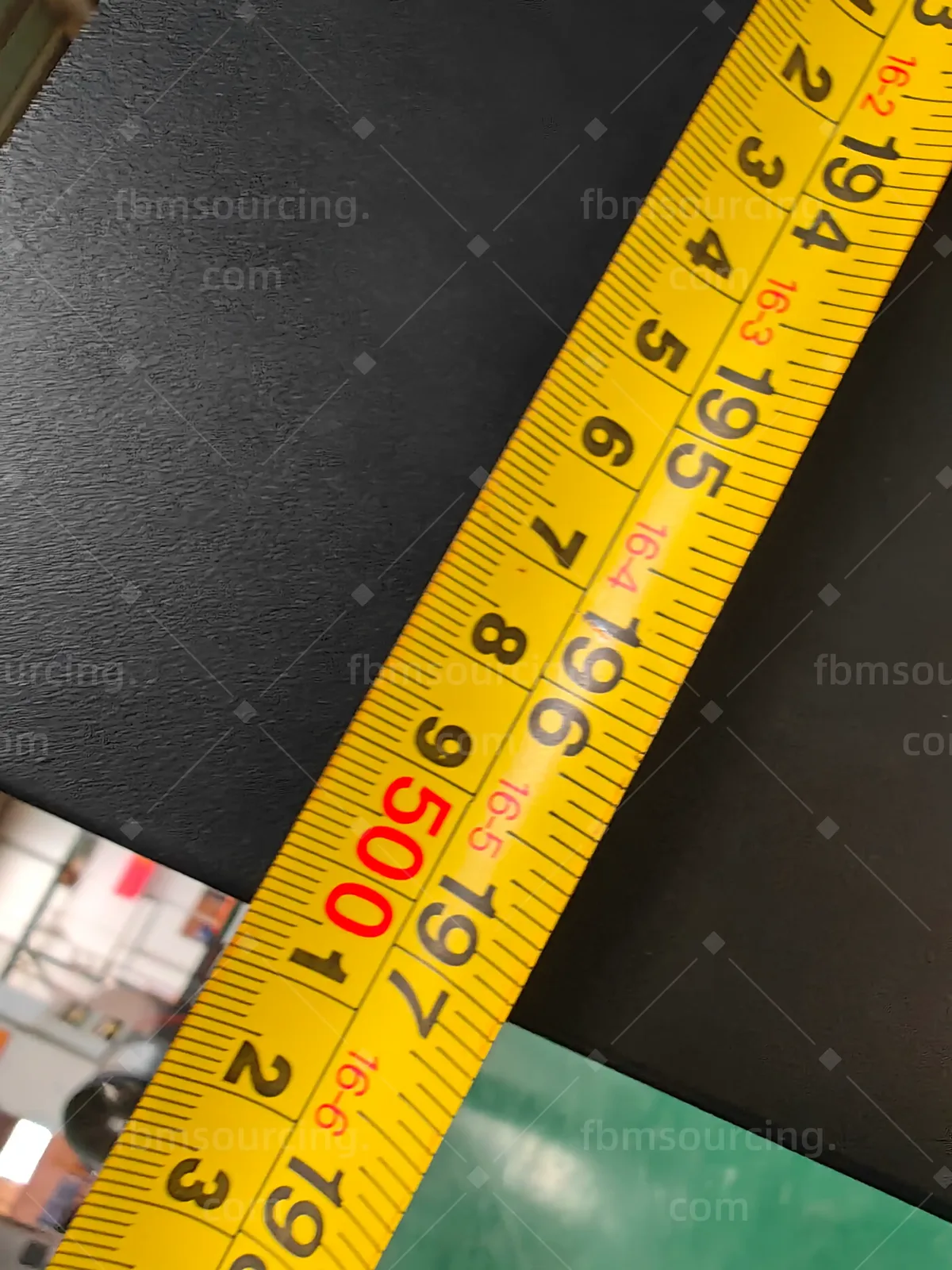

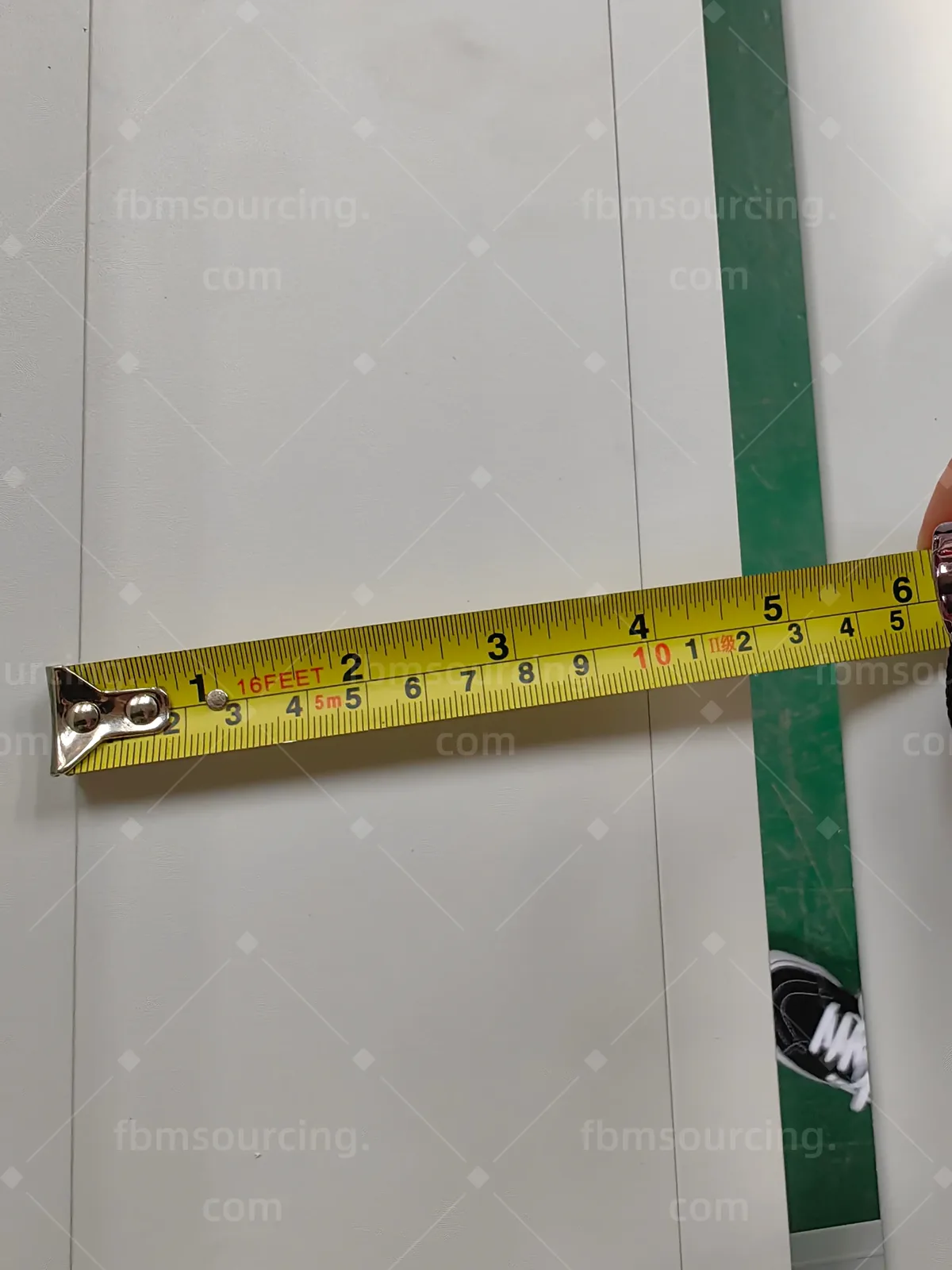

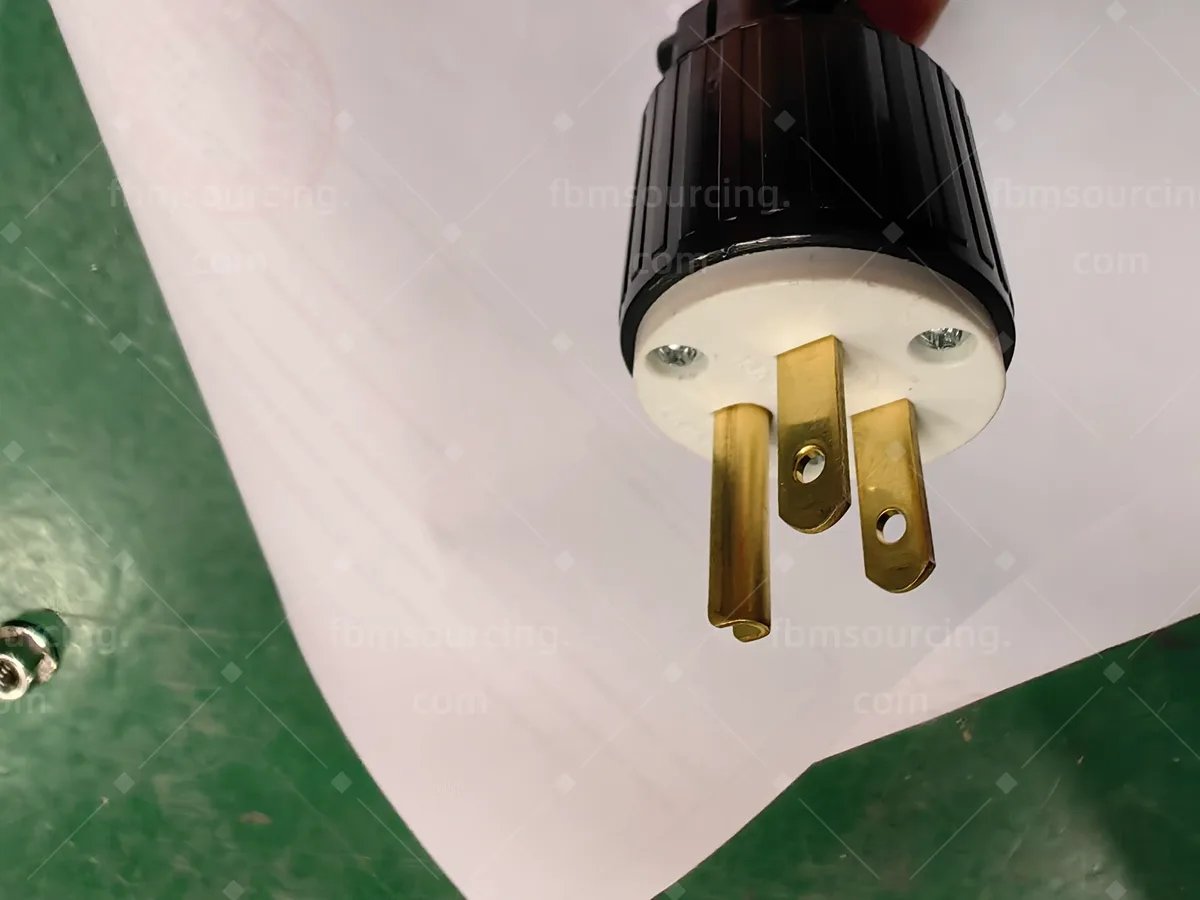

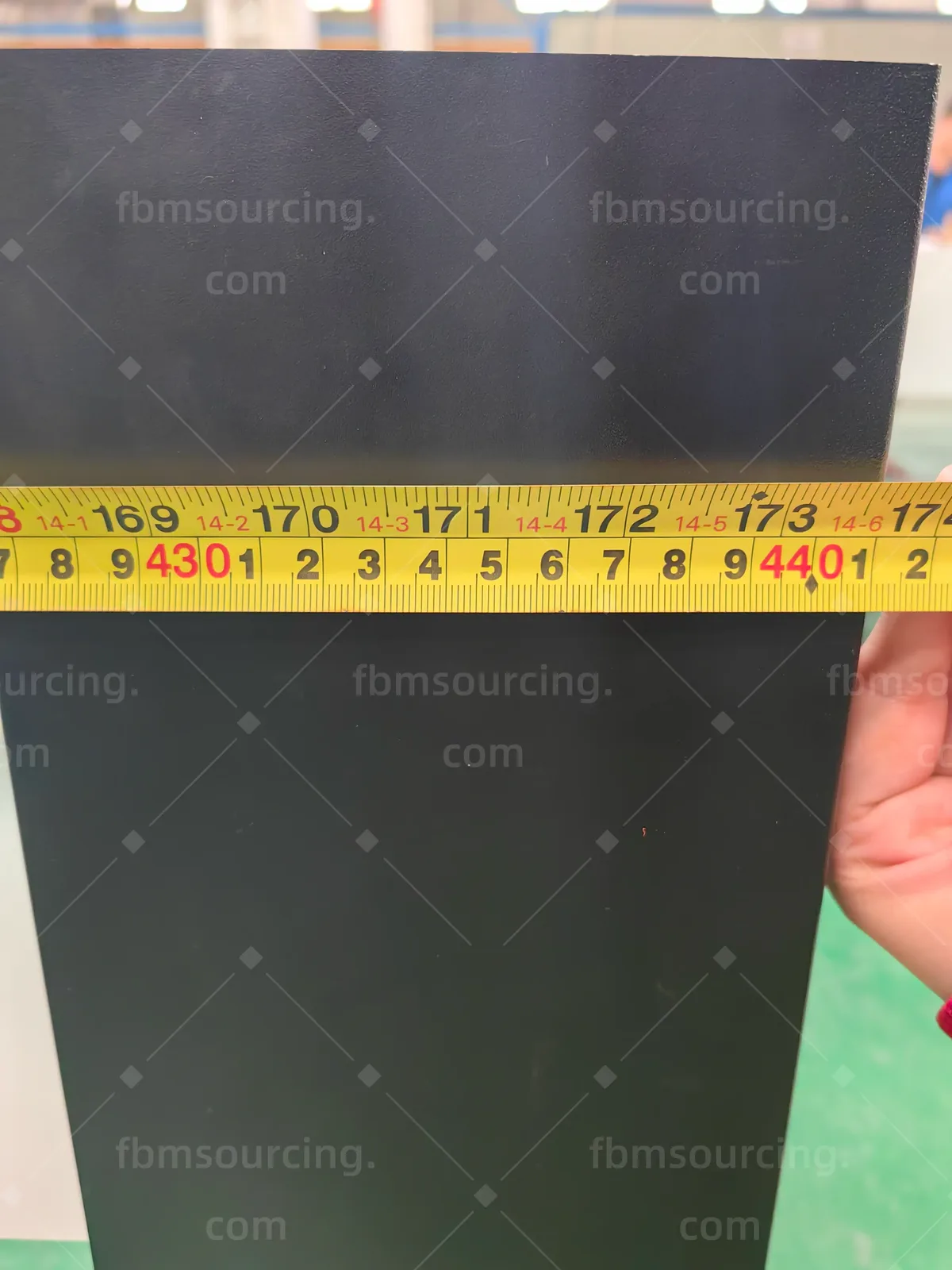

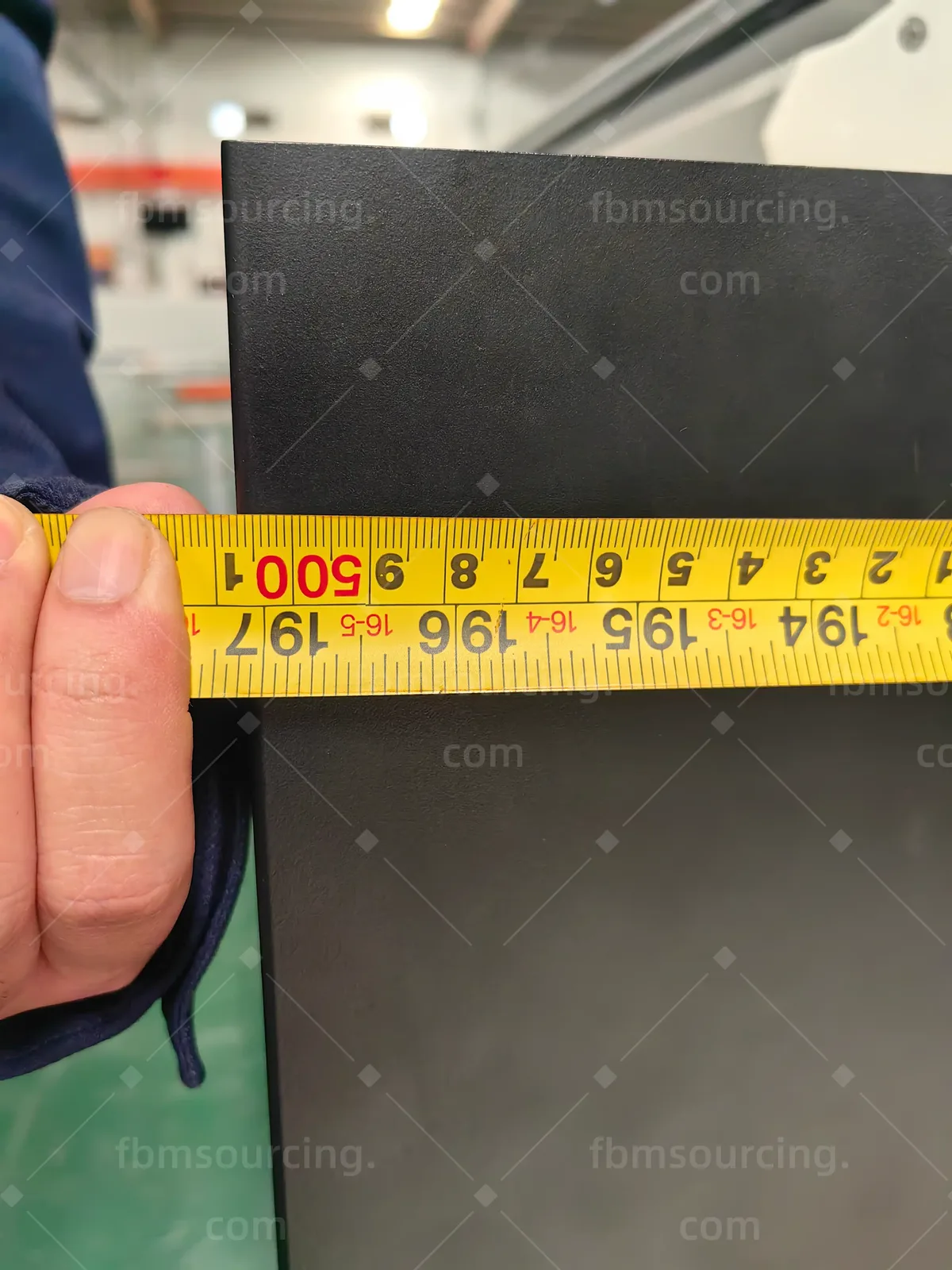

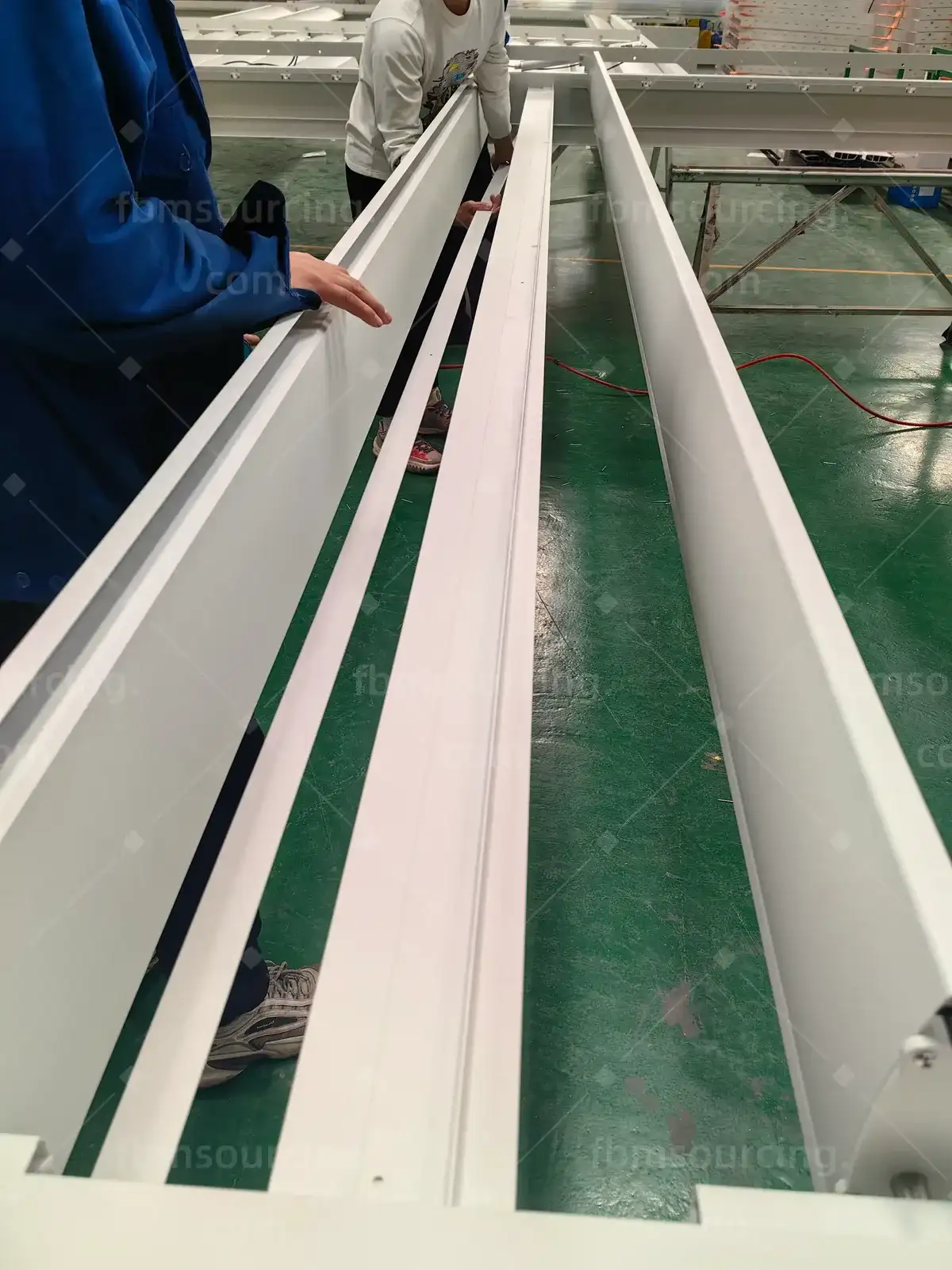

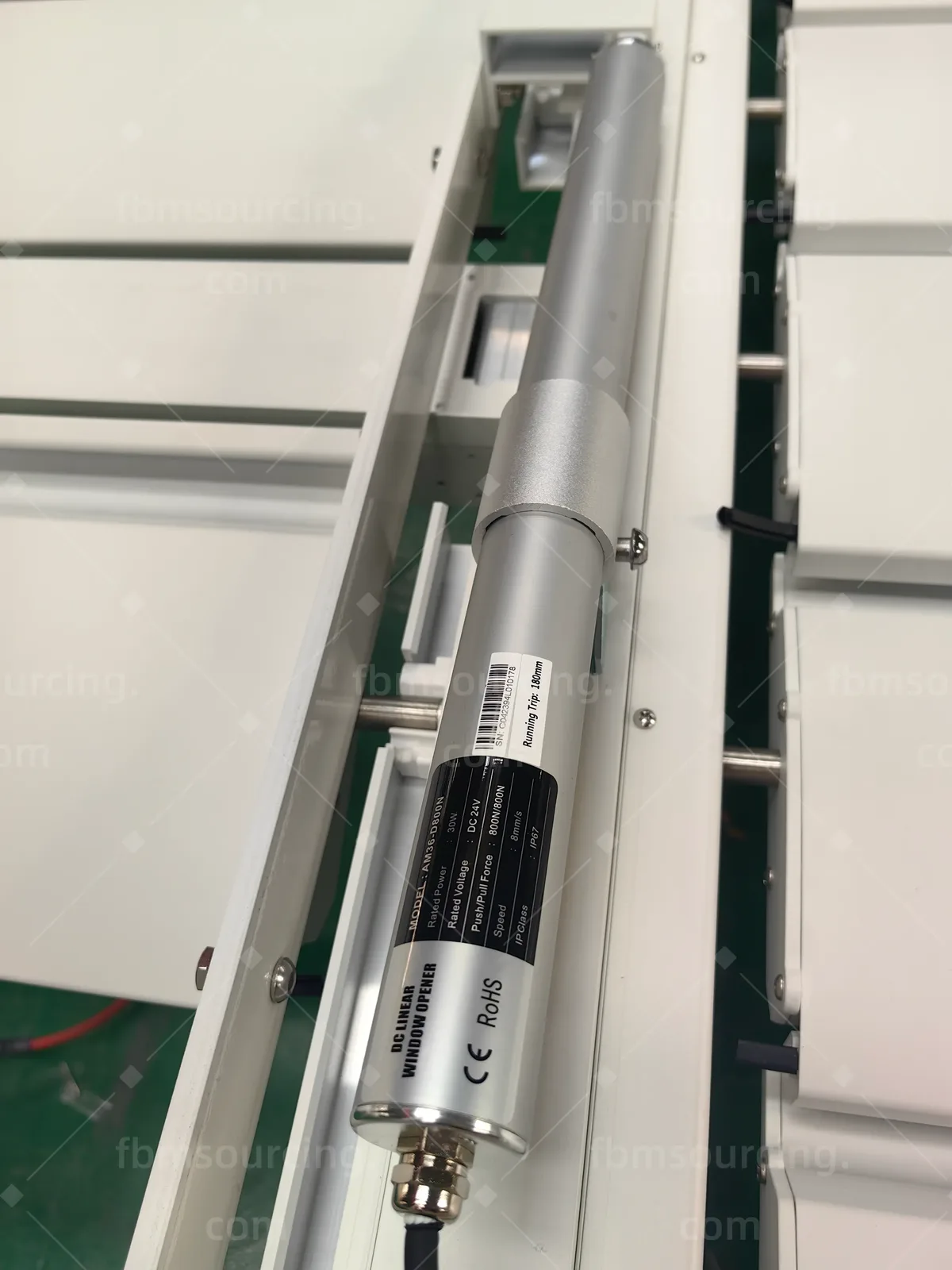

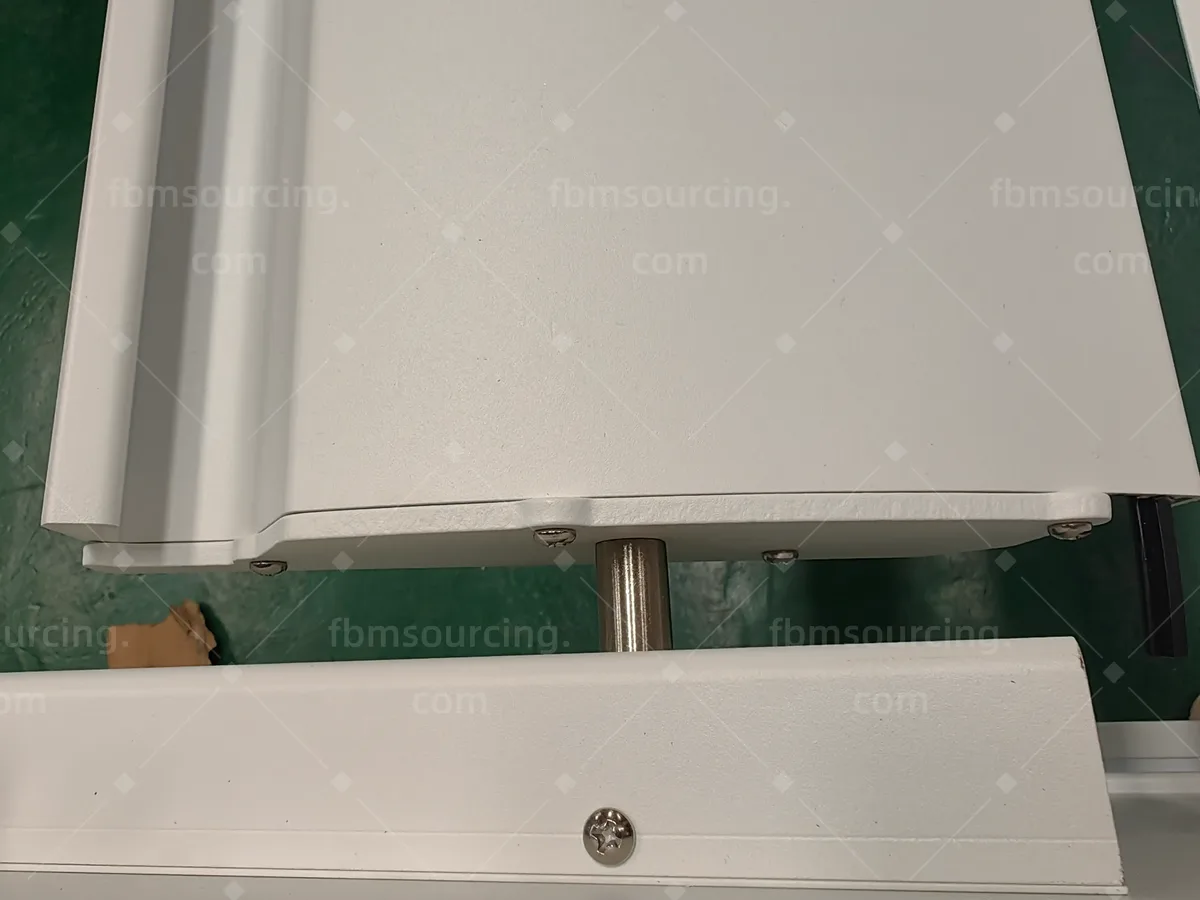

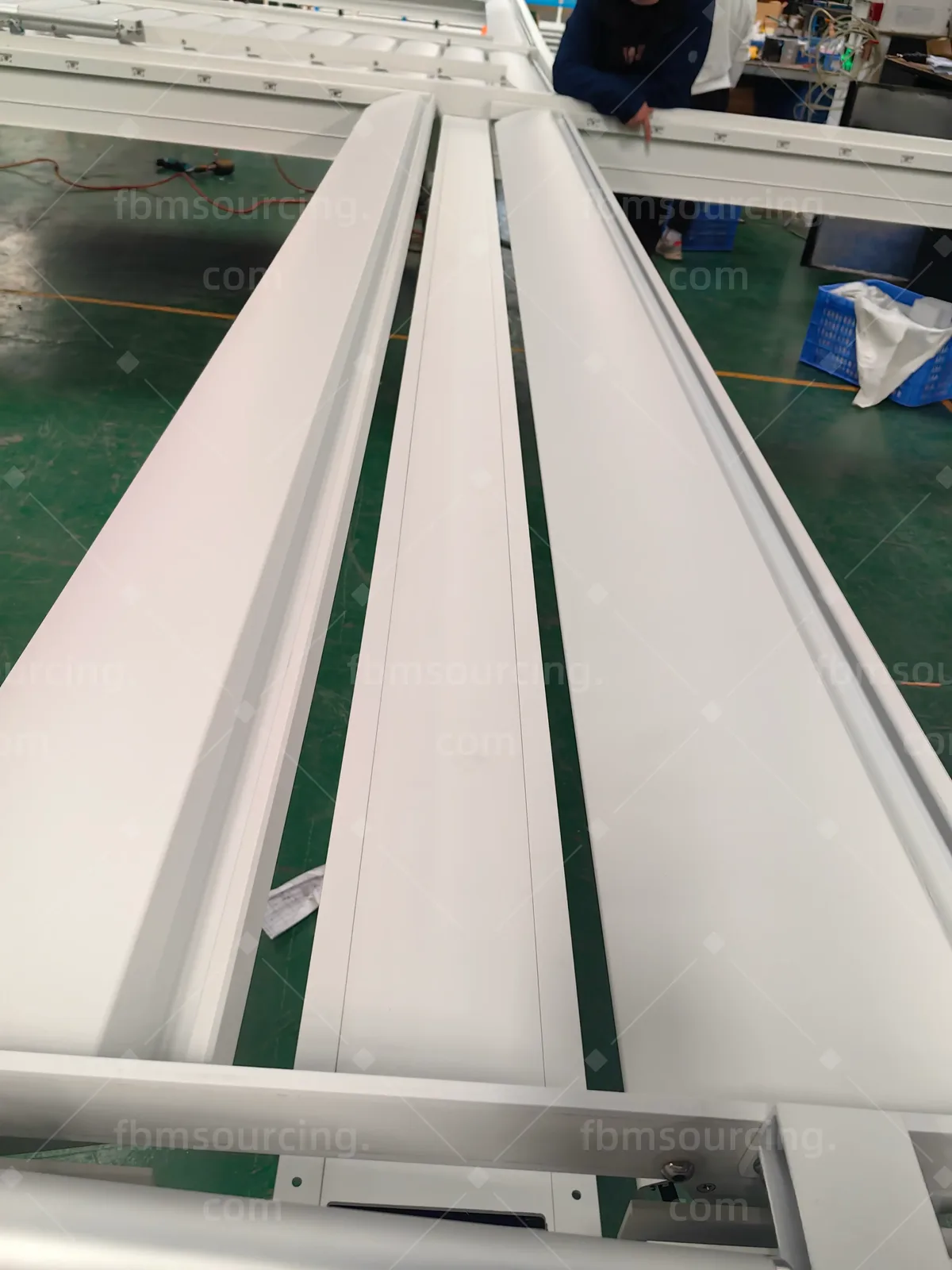

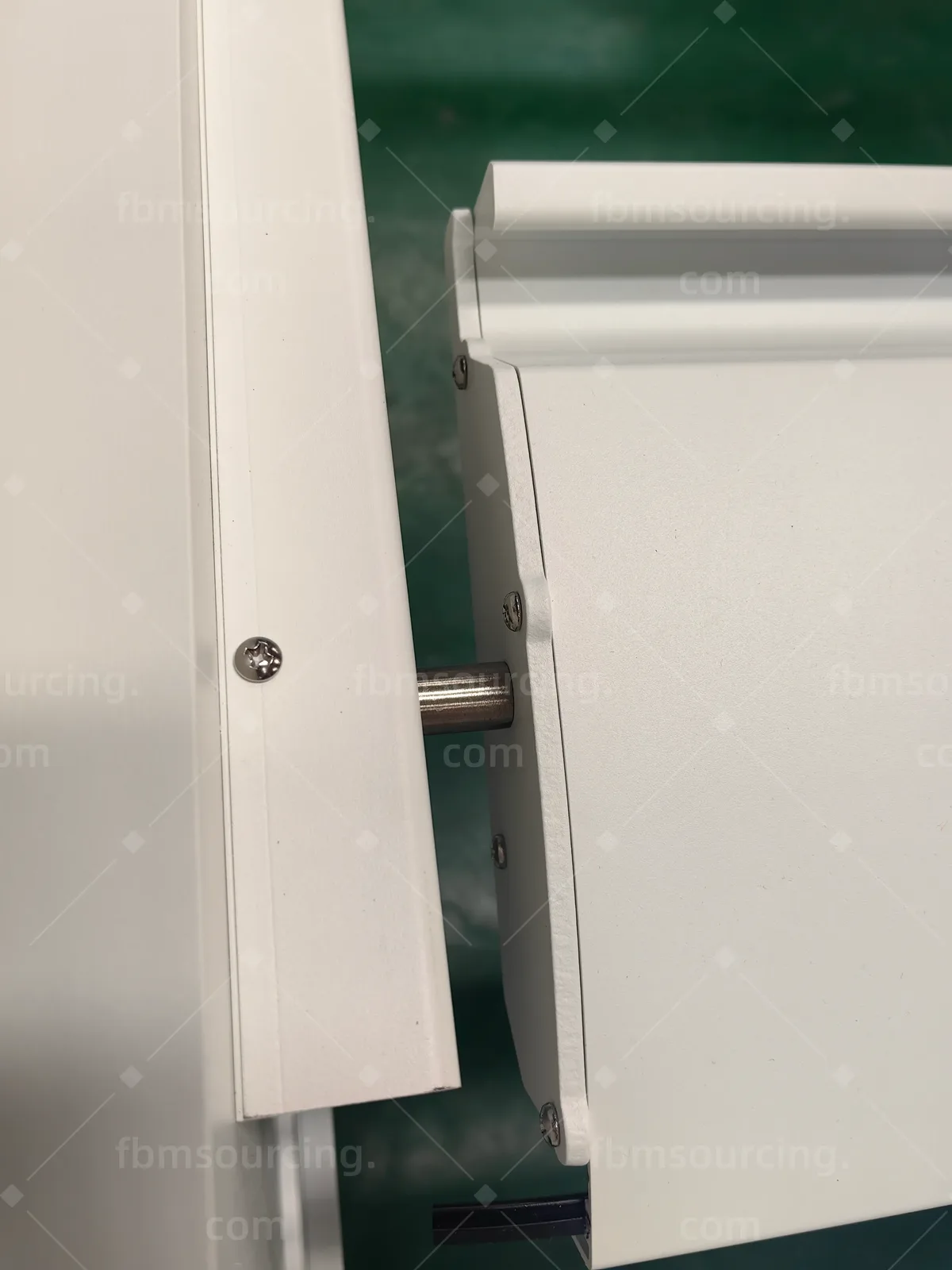

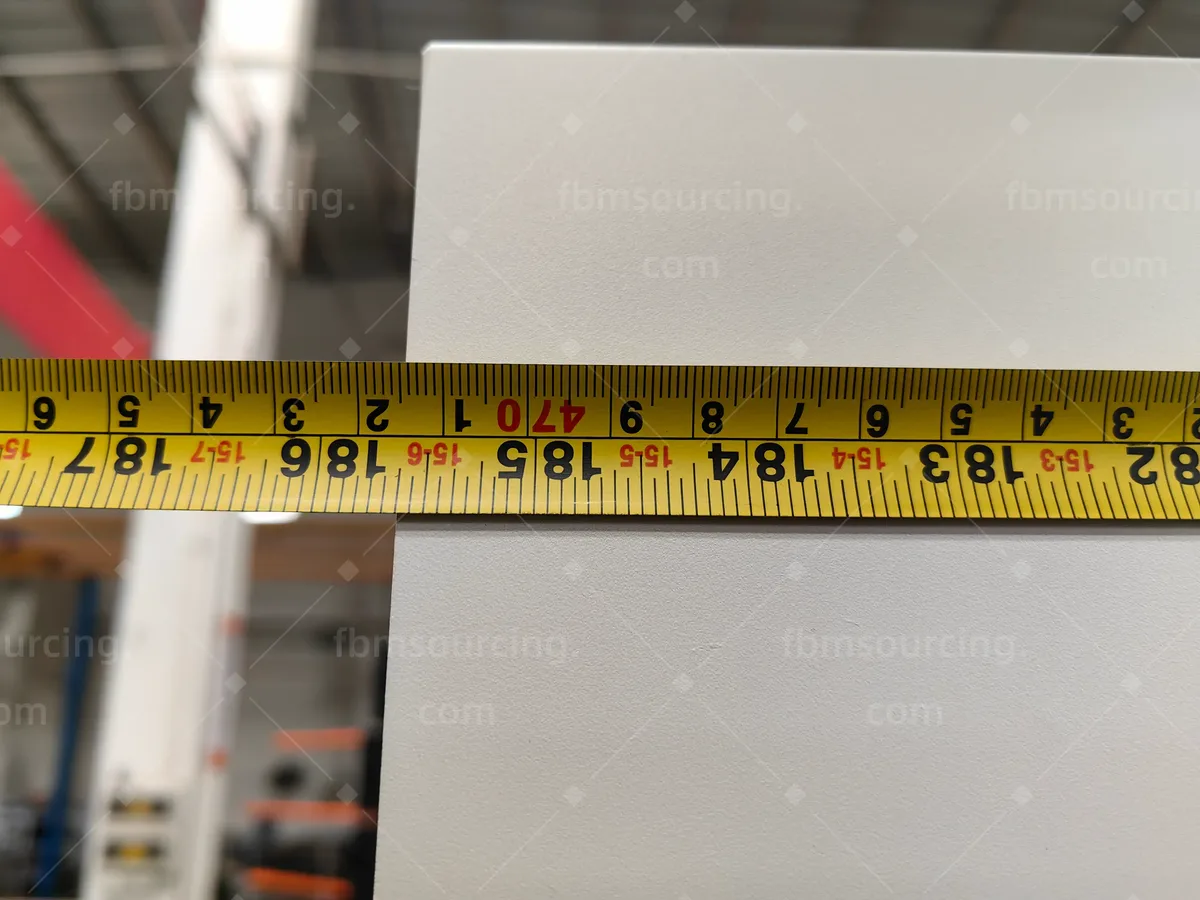

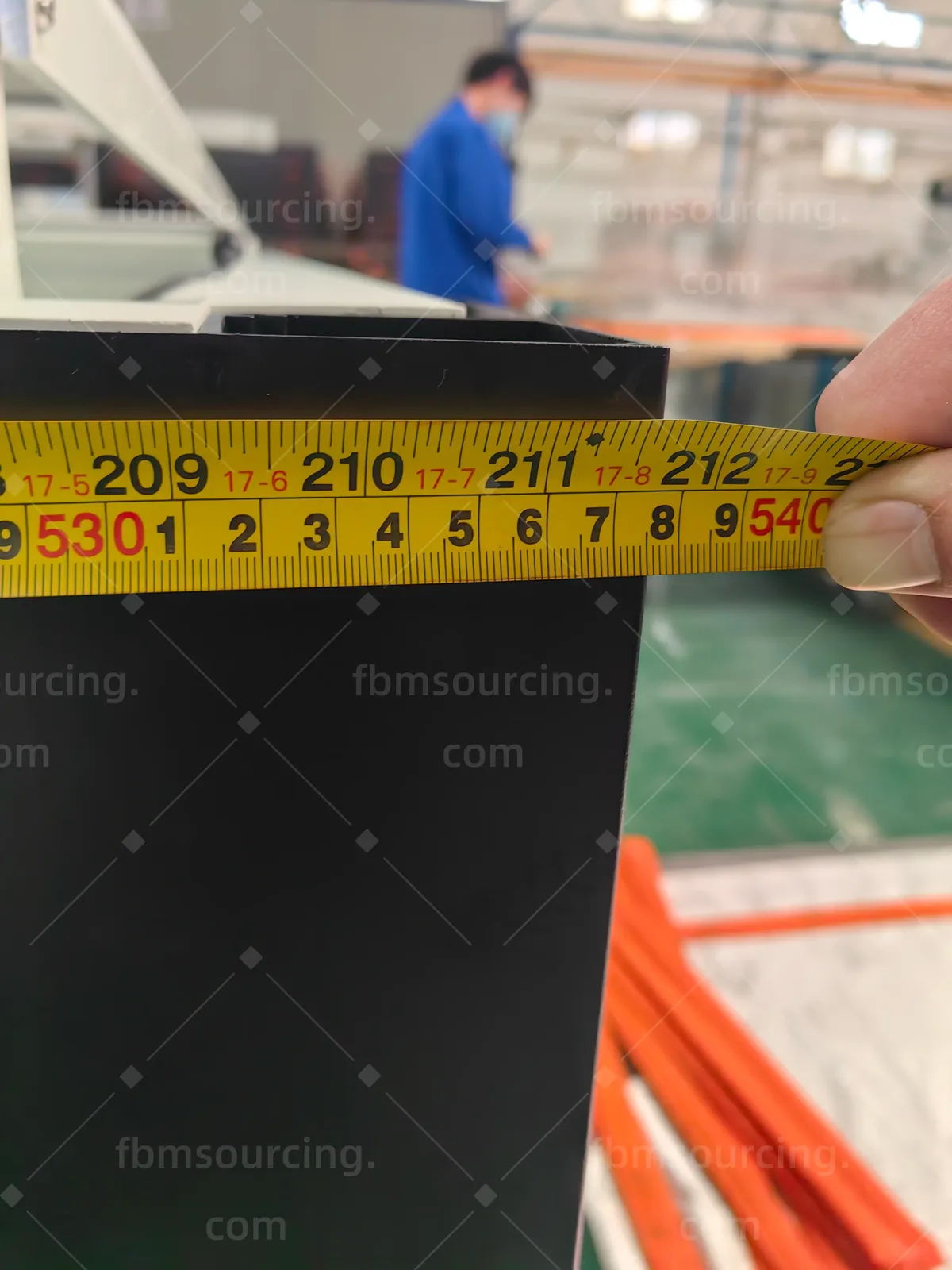

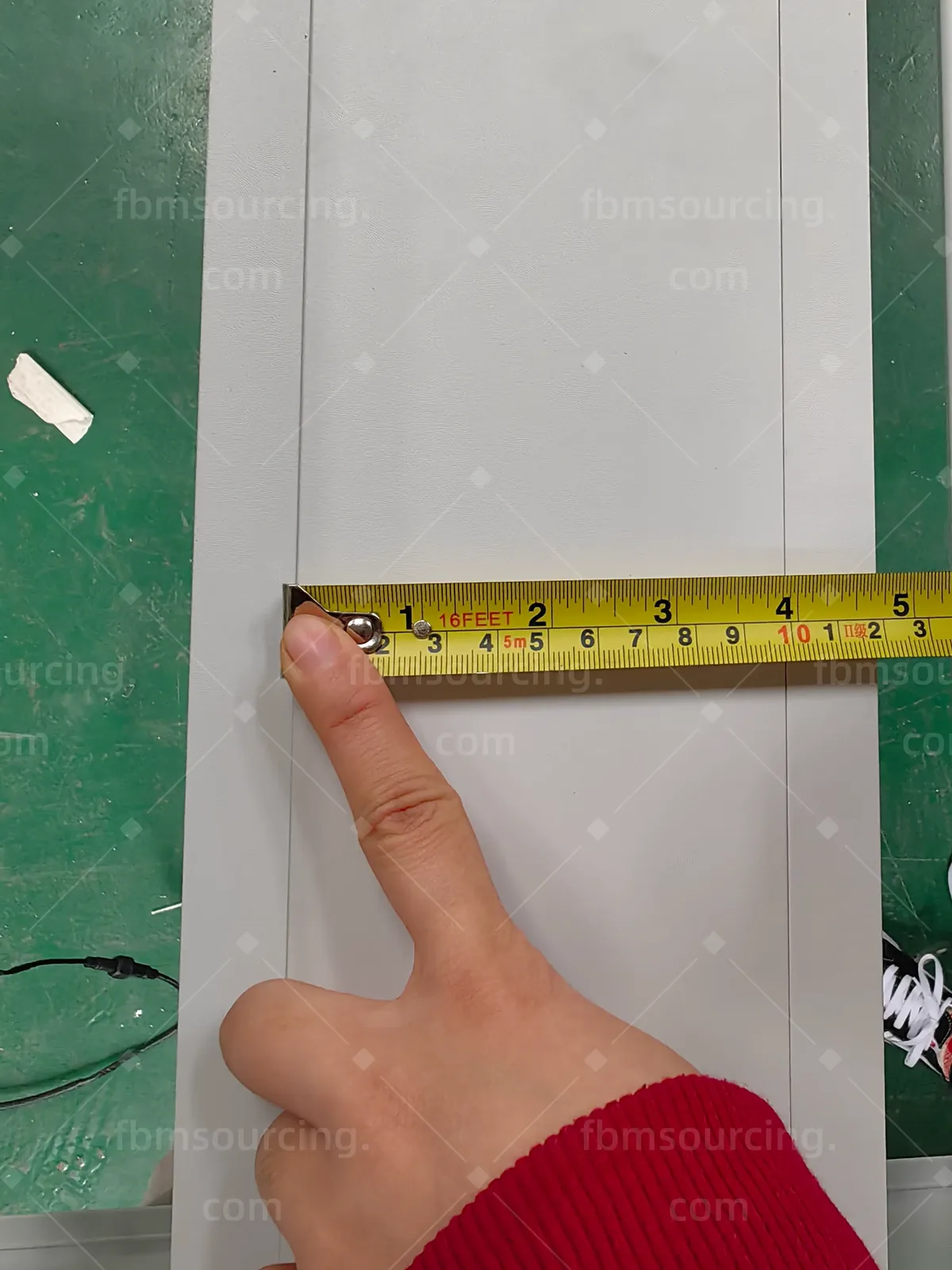

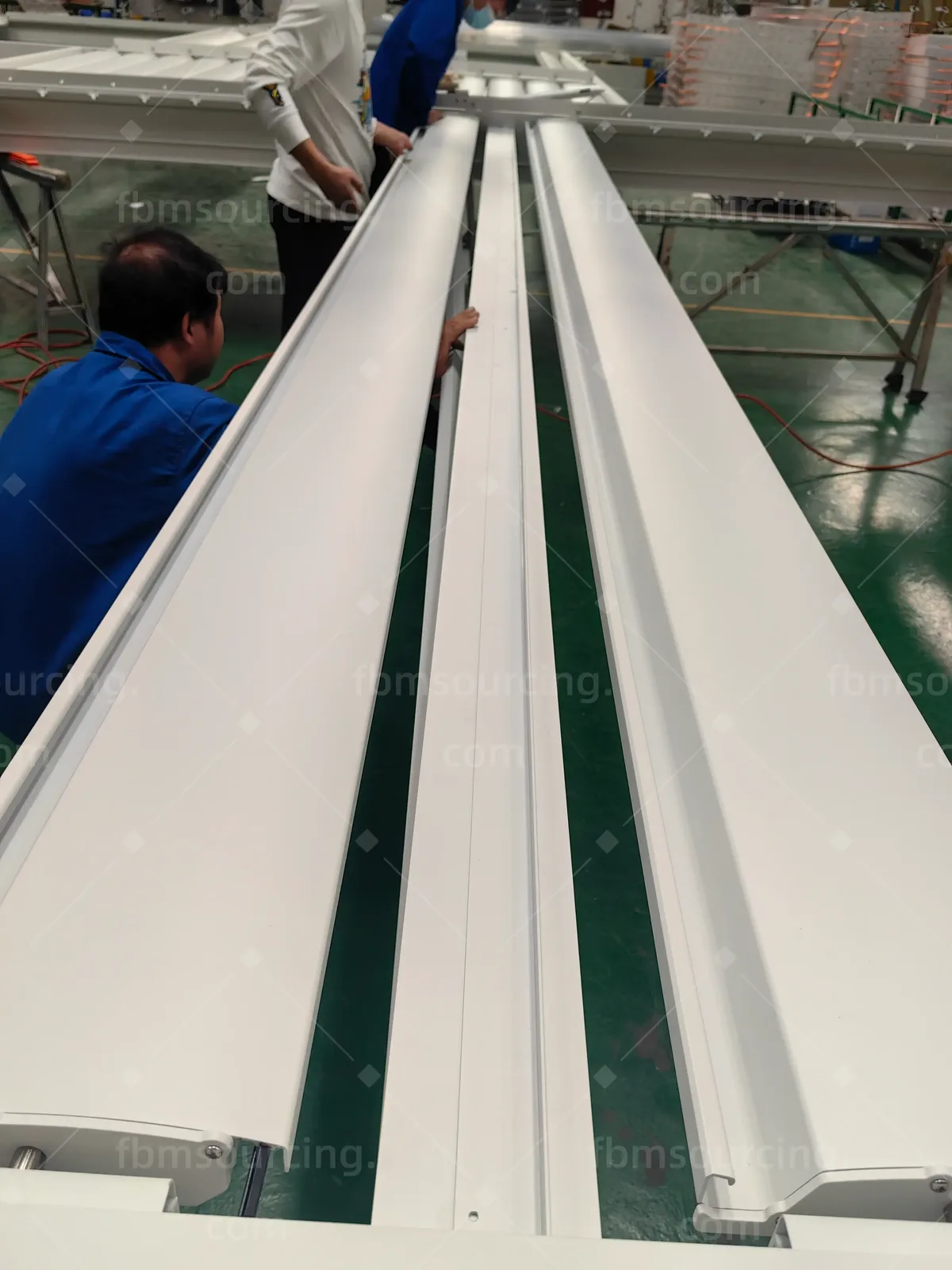

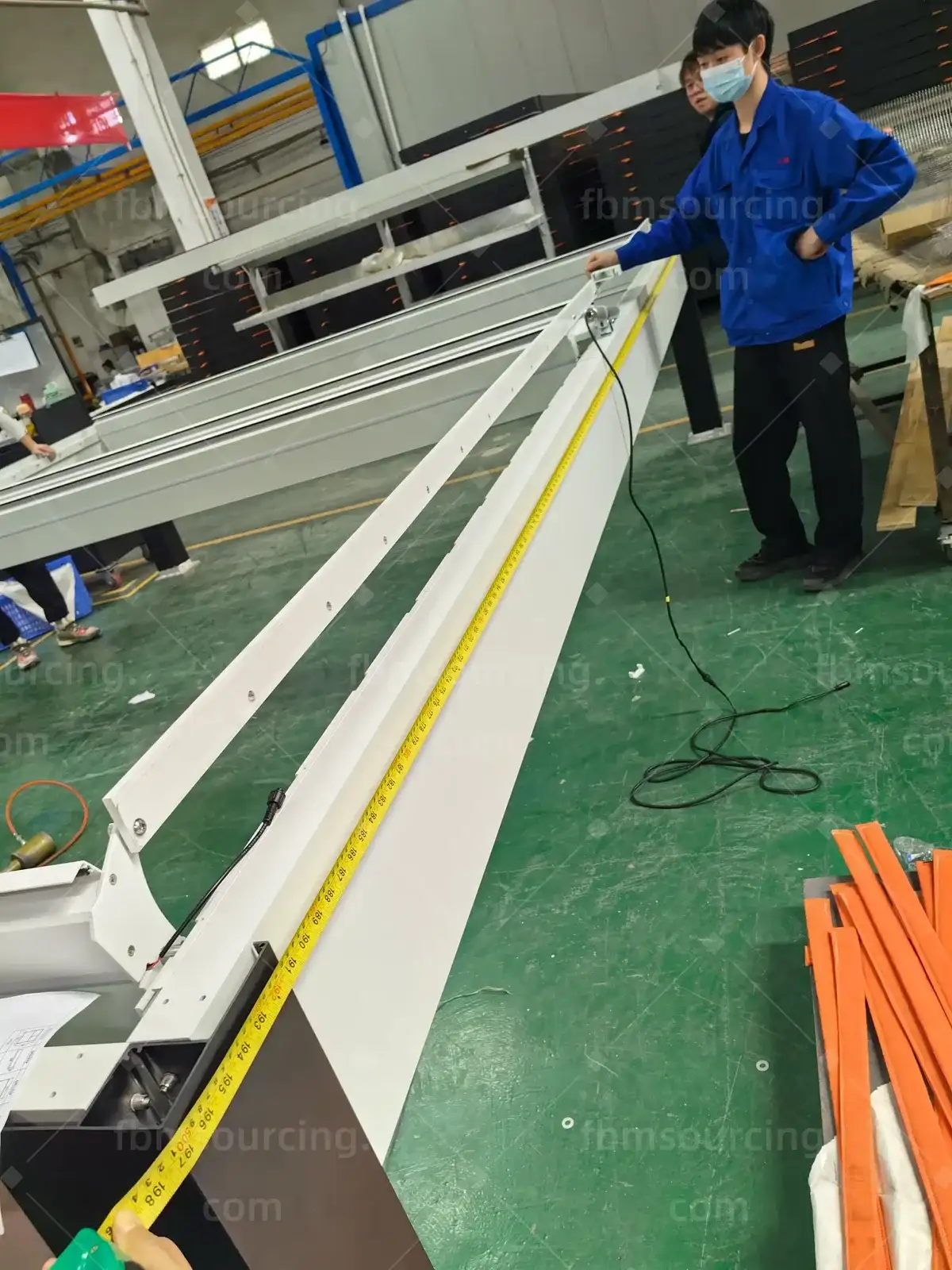

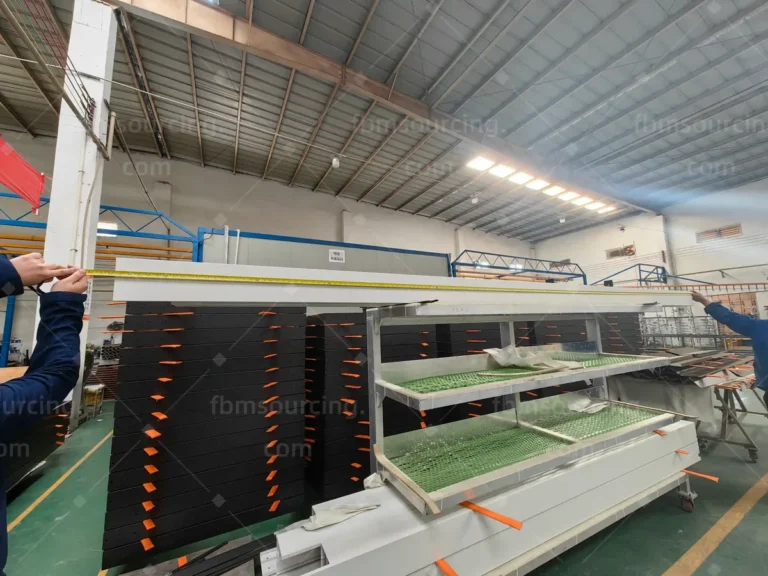

Structural inspection covered: aluminium profile dimension measurements against specification tolerances; powder coat finish uniformity, adhesion, and colour consistency across all components (checking all surfaces including interior channels, not only visible exterior faces); gutter drainage channel integrity — each drainage channel section was water-tested to confirm there were no seal failures or drainage gaps; weld quality on any welded joints; and bracket and hardware dimensional check against the installation drawings. Mechanical and electrical inspection covered: motor operation test on each motor unit (confirming full blade travel from 0° open to 135° closed, checking travel speed, and verifying end-stop engagement at both extremes); louver blade alignment in the open and closed positions; drive shaft engagement and blade rotation torque consistency across all blades in a bay; and remote control pairing and responsiveness. The 30 inspection photos in this case study document both structural and mechanical/electrical inspection stages.
Motorized louvered pergola components require careful packing for sea freight. Long aluminium beam and rafter sections must be protected from surface contact and vibration damage. Louver blades, which have a precisely finished visible surface, are individually wrapped in protective film and packed in foam-lined boxes. Motor units are separately packed in padded cartons with protective foam inserts. Hardware, brackets, and fasteners are bagged and labelled by installation zone to match the assembly sequence, reducing installation time on-site.
FBM Sourcing coordinated the packing sequence and supervised container loading before sealing. Export documentation — commercial invoice, packing list, motor unit electrical certificates, and certificate of origin — was prepared and provided to the client’s customs broker in advance of vessel departure. The full-container-load (FCL) shipment was tracked from Guangzhou port through to U.S. port of entry, with transit updates provided throughout. The client’s customs broker cleared the shipment without issue using the documentation package FBM Sourcing prepared.
After shipment, FBM Sourcing remained the client’s single point of contact for the order. If any item arrived with a transit or quality issue, our team handled the claim directly with the factory concerned — arranging replacement parts or corrective action on the factory’s account — so the client never had to negotiate with a Chinese supplier from overseas. This after-sales accountability is part of every procurement engagement we run.
The completed pergola system — frame, louver blades, motor units, drainage components, and installation hardware — passed both structural and mechanical/electrical inspection at the factory and shipped FCL to the United States on schedule. The contractor received a custom-dimensioned motorized structure at a significant saving against domestic supply, with a full 30-photo inspection record documenting the product’s condition before the container was sealed. The QC photos in this case study are drawn directly from that inspection record.
